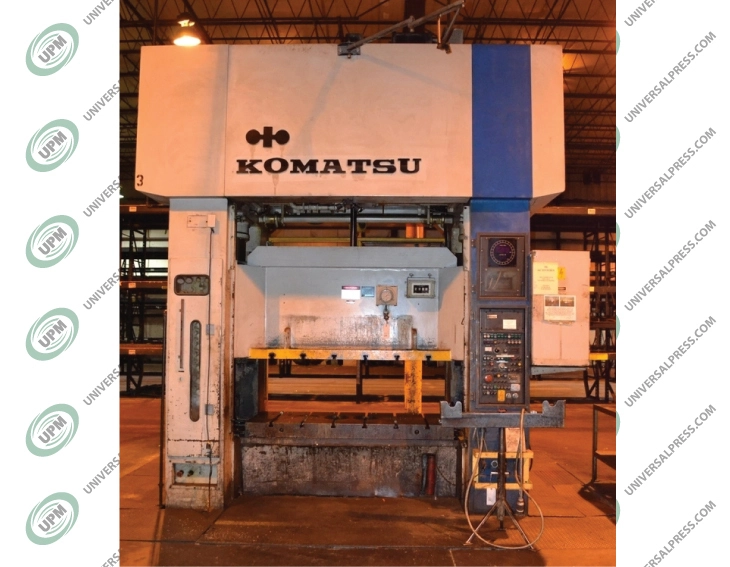

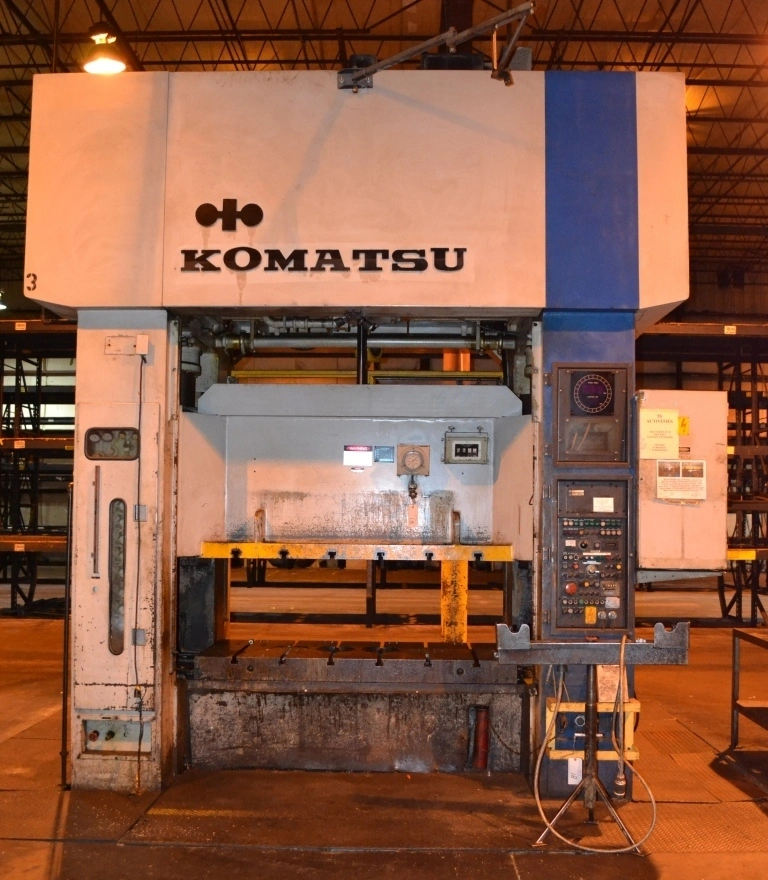

(1) Used 220 Ton Komatsu Eccentric Geared 2-Point Straight Side Press

Serial Number: 10019
Capacity: 220 Short Ton (200 Metric Ton)
Stroke: 15.75” (400mm)
Die Height: 25.59” (Over Bolster) (650mm)
Slide Adjustment: 5.91” (150mm)
Bed & Slide Area: 78.74” L-R x 31.5” F-B (2000mm x 800mm)
Speed: 15-30 SPM
Windows: 44” Wide
FLUSH FLOOR DESIGN WITHOUT DIE CUSHIONS

Equipped With:
Air Clutch & Brake
Air Counterbalances
(4) Die Cushion, 5.9” Stroke (150mm), Each 2.75 Ton @ 114 PSI
Hydraulic Overload
5.91” Thick Plate (150mm)
Front Mounted Control Panel
Single / Inch / Continuous Mode

Approximate Overall Height: 16’ - 9” (Floor to Top of Press)
Approximate Overall Dimensions: 126” LR x 83” FB @ Feet
Estimated Weight: 70,000 lbs
