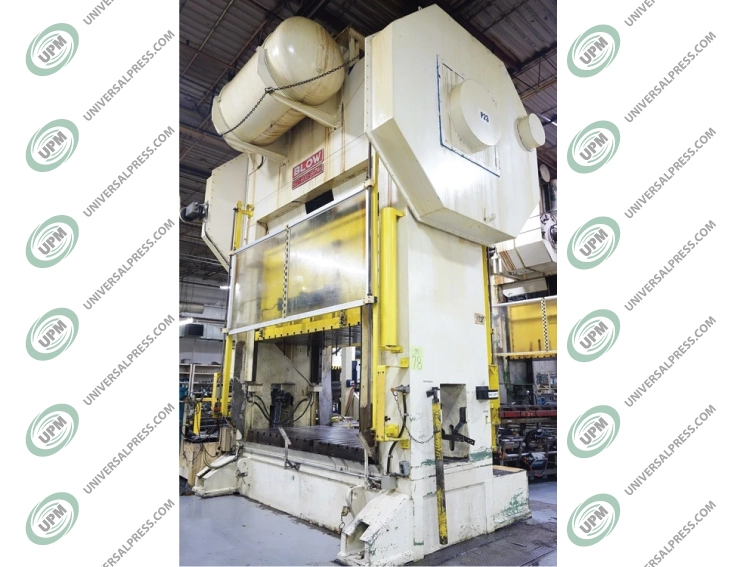

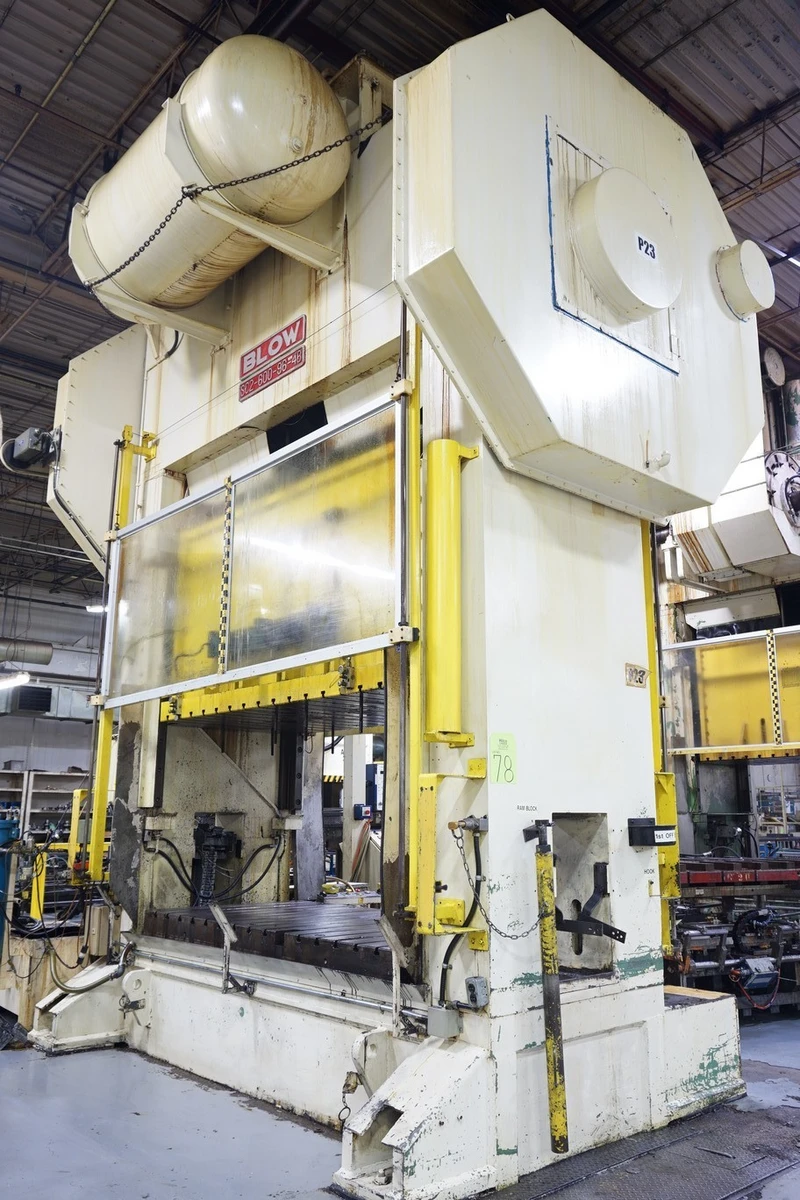

(1) Used 600 Ton Blow SDG-600-96-48 Straight Side Double Crank Press
Have one to sell?
$120,000.00 USD
ConditionUsed
1 available
(1) Used 600 Ton Blow SDG-600-96-48 Straight Side Double Crank Press
Serial Number: SDG-600-23185
Capacity: 600 Ton
Stroke: 16”
Shut Height: 36”
Slide Adjustment: 10”
Bed & Slide Area: 96”LR x 48”FB
Speeds: 14 - 28 SPM Variable
Windows: 16”
Air Clutch & Brake
Twin End Drive
T-Slotted Bolster Plate
T-Slotted Slide
Operator Control Console
Estimated Breakdown Weights
Crown Ass'y - 65,000 Lbs.
Base and Bolster - 38,000 Lbs.
Columns, Tie Rods, Console, T-Stand, Flywheel guard and C'Balance Cylinders - 29,585 Lbs.
Air Receiver, Tie Rod Nuts, Slide and Misc. Parts - 29,000 Lbs.
