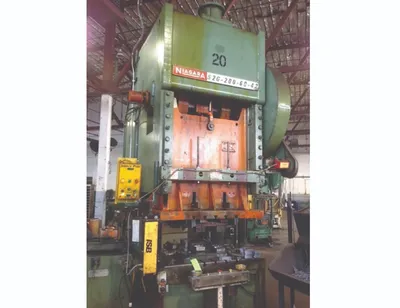

(1) Used 200 Ton Niagara Double Crank Gap Press

(1) Used 200 Ton Niagara Double Crank Gap Press

Have one to sell?
248-268-1603
sales@universalpress.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
NIAGARA
Model:
S2G-200-60-42
Year:
1970
Stock #:
10559
Status:
For Sale

Description

Used 200 Ton Niagara Double Crank Gap Press, model S2G-200-60-42, 1970. Features 60x42-inch bed, 200T capacity, 8-inch stroke, double crank, air clutch & brake, and T-slotted bolster/ram. Equipped with light curtains and pneumatic cushion. Catalog weight: 66,800 lbs.

Ton200 T
Bed L-R60 in
Bed F-B42 in
Stroke8 in
Shut Height22.5 in
OBI Single DoubleDouble CrankDouble Crank
Cushionsyesyes

Capacity: 200 Ton
Stroke: 8”
Shut Height: 22.5”, SDAU Over Bed
Slide Adjustment: 10”
Speed: 30 - 60 SPM
Bed Area: 60” LR x x 42” FB
Bolster Thickness: 6”
Ram Area: 60” LR x 42” FB

Equipped With:
6” T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion

Catalog Weight: 66,800#

GA Drawing upon request.
