Line Runs Left to Right

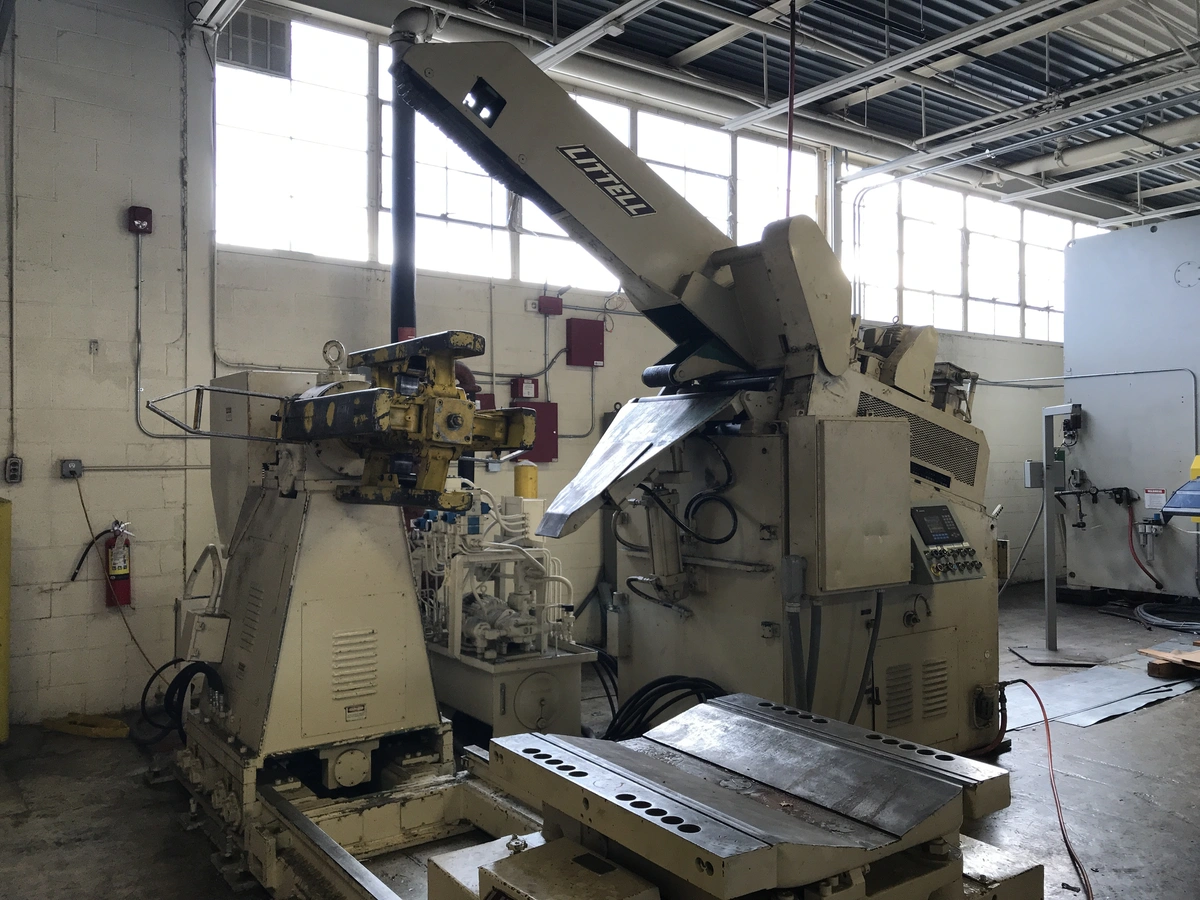

Littell Model#90-30 Coil Reel With Coil Car
Year: 1980
Coil Capacity: 10,000 Lbs
Coil Width: 30”
Coil ID: 20” - 24”
Coil OD: 60”
Floor to Centerline of Mandrel: 63.5”
Hydraulic Expansion
Inch Forward / Reverse
Lateral Travel of 12” (6” Either Side of Centerline)
Electric Brake
(2) Coil Keepers

Littell #S200 Coil Car
24” x 36” w/Rotary Head
Length of Floor Plate 159”

Littell #626D-7PD Powered Straightener
Variable Speed
Material With: 24”
Rated Thickness (Stainless or Mild Steel): .031” - .156” x 24” Wide
No. of Rolls: 7
Roll Dimensions: 4” Diameter x 26 1/2” on 6 1/2” Centers
Stock Guides Open From 1” - 26 1/2”
Pinch Rolls (2 Sets) 6 1/4” Diameter x 26 1/2” Long
Pass Line Height: 62”
Speed Varialbe: 0 to 50 FPM
Motor 10 HP Eddy Current Drive
Air Operated Electrically Timed Grease Lubrication System
All Rolls Mounted on Anti-Friction Bearings
Littell Powered Caterpillar Type Heavy Duty Holddown Arm
Peeler
Stock Guide Assembly
Hydraulics

New in 2018 - Allen Bradley PLC Interface Control Update
