(1) Used 17.6 Ton Magnum C-Frame Hydraulic Press
Have one to sell?
ConditionUsed
1 available
Stroke Range: 0.5” - 8”

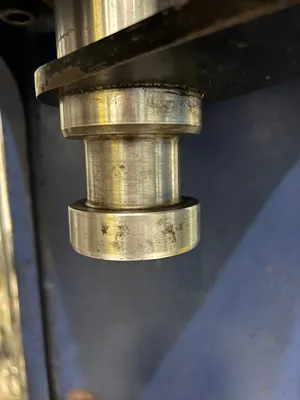

Rod Diameter: 2.50”

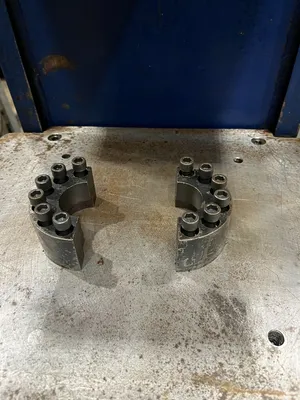

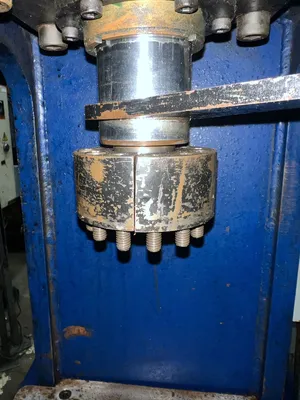

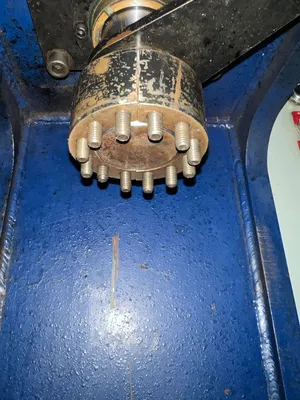

Cylinder Rod End: SAFE Coupler
Rated Pressure: 2500 PSI (3000 PSI Maximum)
Rated Tonnage: 17.6 Ton
Minimum Shut Height: 8”
Maximum Daylight: 16”
Throat: 8”
Bed Size: 18” L-R x 14” F-B
Reservoir Capacity: 20 Gallons (Approximately)
Speeds: 220 IPM Rapid Advance / 90 IPM Pressing / 140 IPM Return

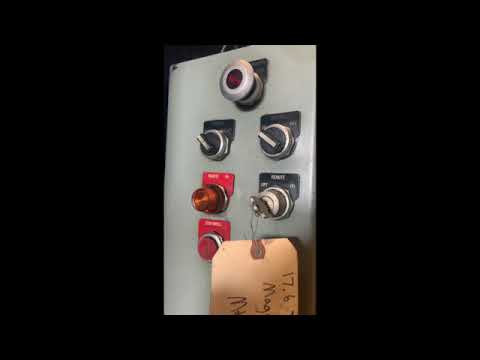

Electrical
Supplied Wired Voltage: 230 VAC Poly Phase
Motor Voltages: 200-230/460
Motor 7 1/2 HP
Approximate Dimensions: 4’ L-R x 4’ F-B x 6’ High
Approximate Weight: 3,250 lbs
