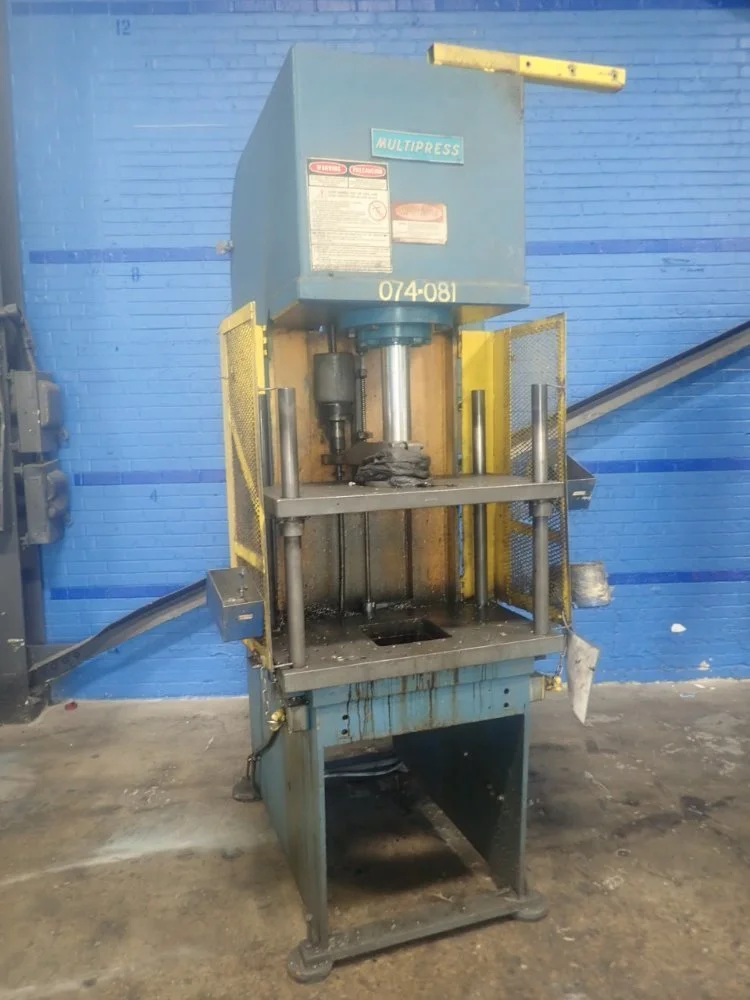

(1) Used 20 Ton MULTIPRESS 4 Post Guided Ram Hydraulic C-Frame Press
Have one to sell?
ConditionUsed
1 available
$15,500.00 USD
Used 1995 MULTIPRESS FH-20, 20 Ton Hydraulic C-Frame Press. Features a 4-post guided ram, 32"x18" bed, 12" stroke, and 25" daylight opening. Powered by 20 HP motor. Measures 30"x16" post space, 3,200 lbs. Excellent for heavy-duty tasks.
Hydraulic Press
4 Post
20 Ton
32” x 18” Bolster size
30” x 16” Post space
12” Stroke
25” Daylight
20 HP
Ram Speeds IPM @ 1800 RPM 60Hz
Closing: 550
Pressing: 250
Return 600
Bore IN: 4-1/2
Ram IN: 3-1/4
MAX PSI: 2516
Reservoir Capacity GAL: 55
Weight: 3,200 LBS
