(1) Used 220 Ton Stamtec Single Point Gap Frame Press
Have one to sell?
ConditionUsed
1 available

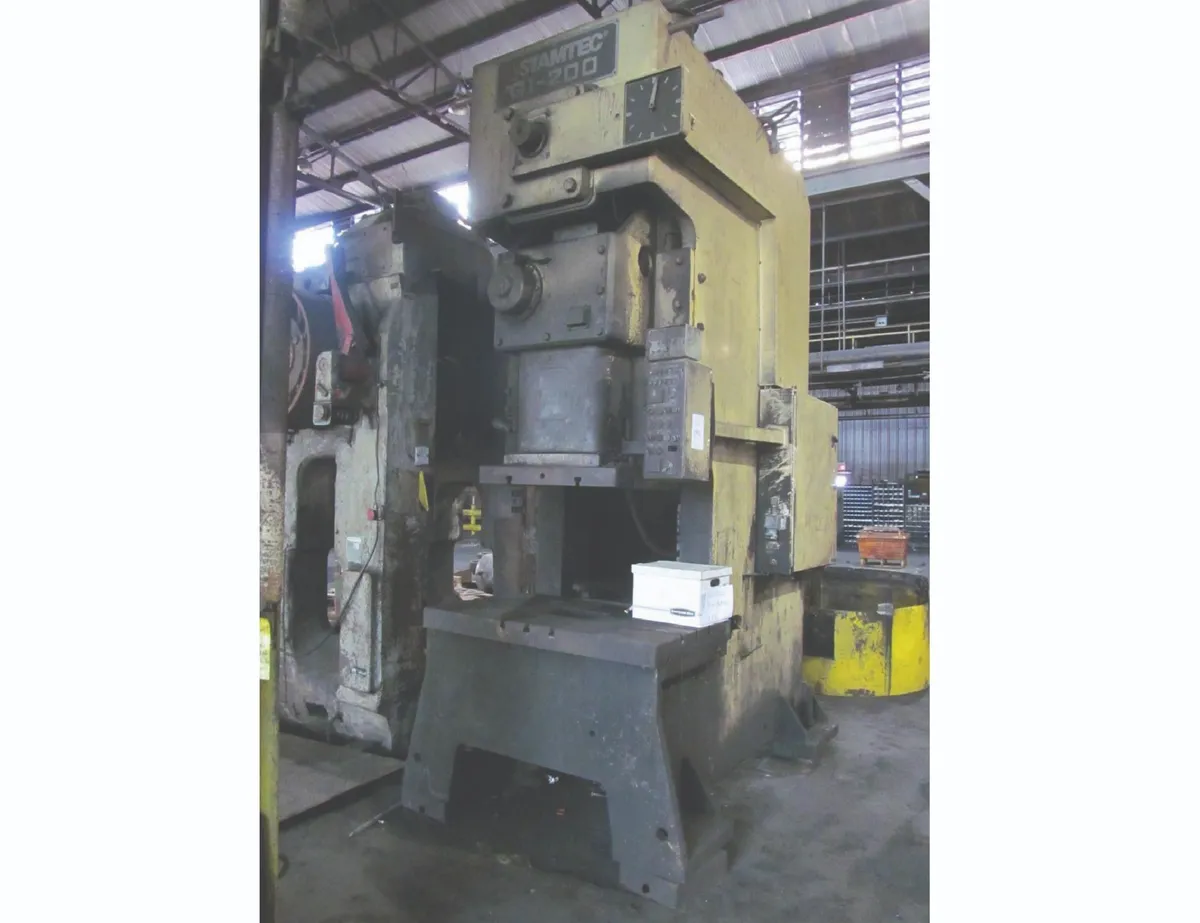

Used 1998 Stamtec G1-200 220 Ton OBI Gap Frame Press with 55"x32" bed area, 7.88" stroke, and air clutch and brake. Features motorized slide adjustment and air counterbalance. Overall height: 12'6", weight: 46,000 lbs.
Capacity: 220 Ton
Stroke: 7.88”
Adjustment: 4.33”
Die Height: 17.73”
Speed: 20 - 50 SPM
Bed Area: 55” lr x 32” fb
Slide Area: 33” lr x 24” fb
EQUIPPED WITH:
Air Clutch and Brake
Air Counterbalance
Motorized Slide Adjustment
Overall height: 12’6”
Catalog Weight: 46,000#
