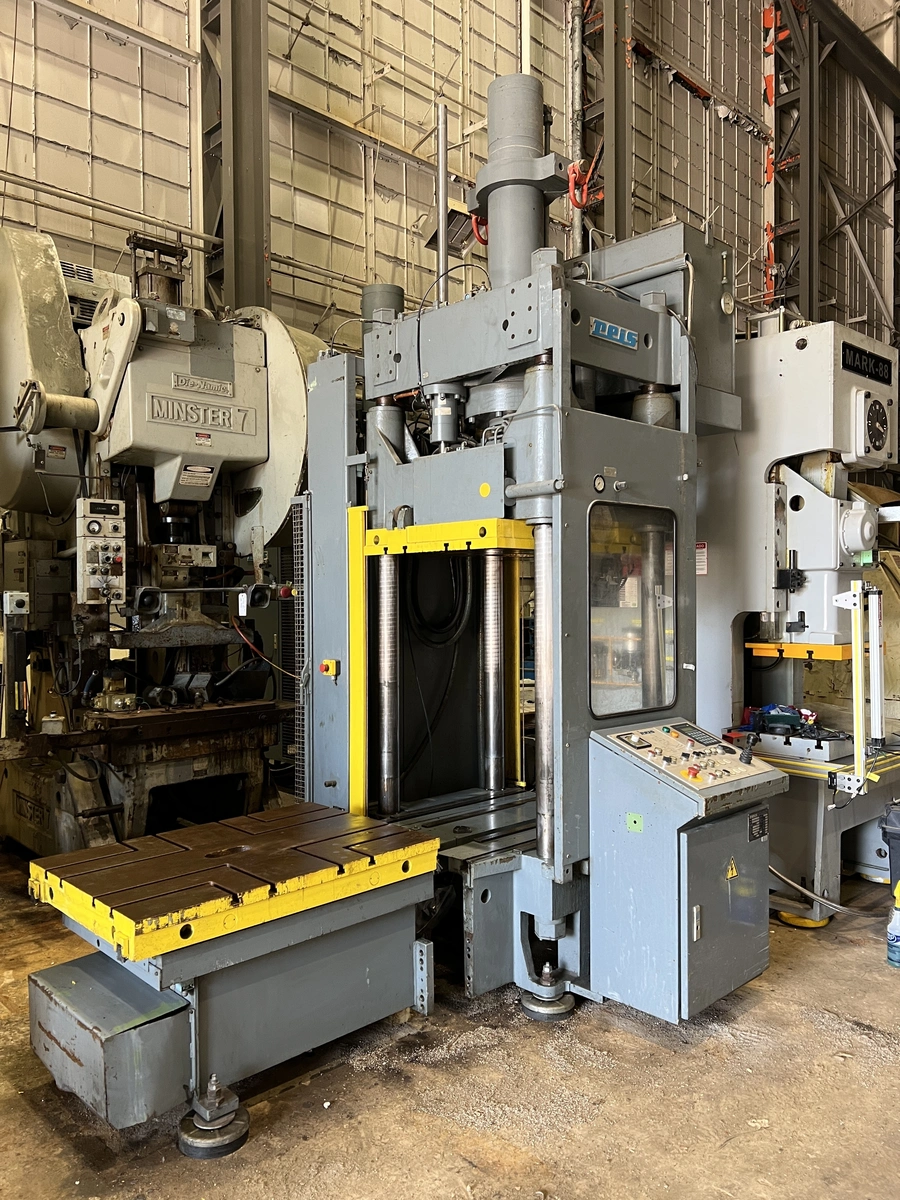

(1) Used 50 Ton Reis Mold Spotting and Try-out Press

New: 1996
Nominal Force: 50.98 US Ton (500 KN @ 200 bar)
Max. Retraction Force: 25.49 US Ton (250 KN)
Daylight Opening: 41.33” (1050mm) + 3.93” (100mm Daylight Enlargement): 45.26”
Stroke: 39.37” (1000mm) +3.93” (100mm Extension): 43.3”
Table Surface Area: 43.30” L-R x 31.49” F-B (1100mm x 800mm)
Ram Surface Area: 43.30” L-R x 31.49” F-B (1100mm x 800mm)
Distance Between Columns (F-B): 33.46” (850mm)
Max Capacity of Swivel Ram Plate: 2.54 Ton (25 KN)
Die Weight on Table Max: 5.09 Ton (50KN)
Oil Volume: 52.8 gallon (200L)

EQUIPPED WITH:
Swing Down Ram: 180º
Slide Out Bolster
Mechanical Ram-Locking Device
Injection Unit
Positioning Control with Digital Measuring Device
Hours: 1059

Approximate Overall Height: 150” (3,8m)
Approximate Floor Space: 135” L-R x 82” F-B (3,4m x 2,1m)
Estimated Weight: 17,636 Lbs (8000Kg)
