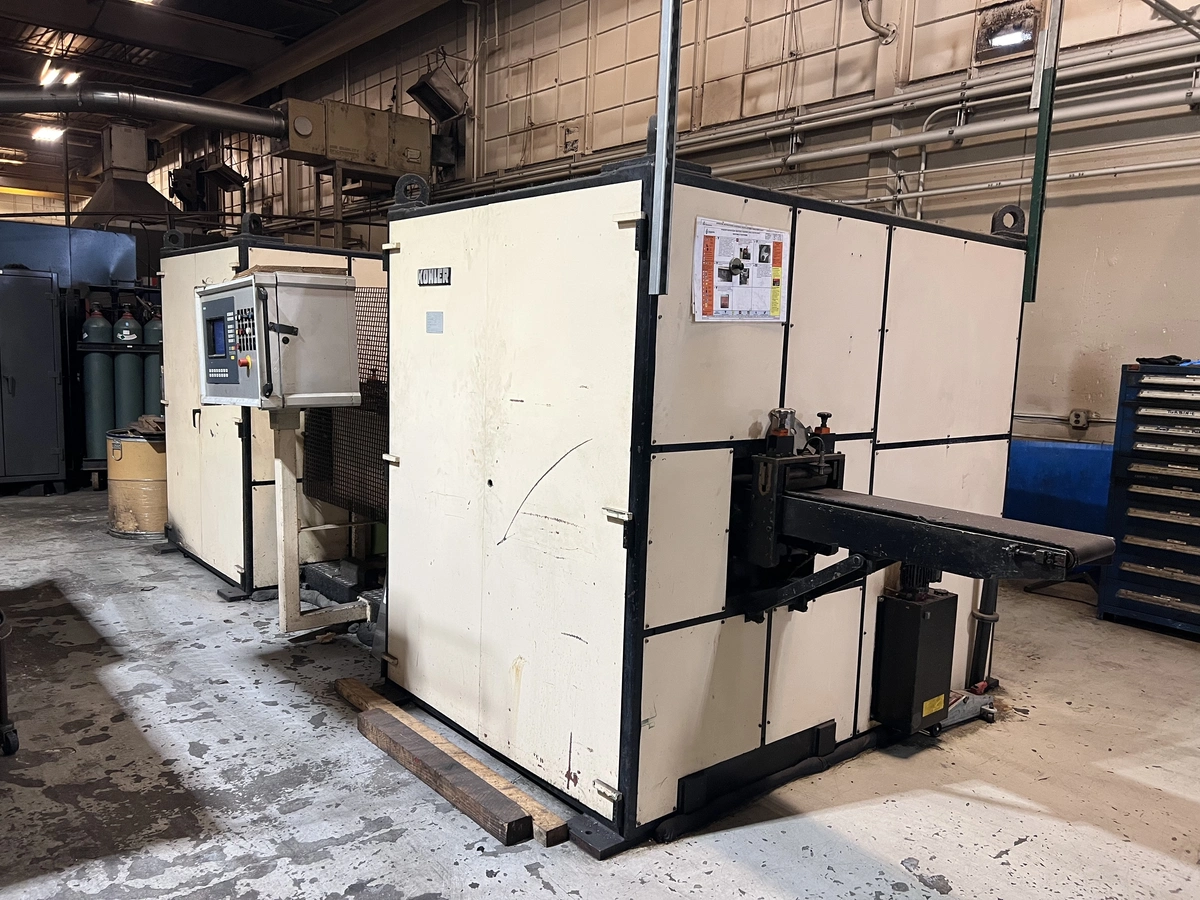

(1) Used Kohler CNC Tandem Leveling Line

Year: 2000
Serial Number: (100373)
Capacity: 10.3” x .197” (Maximum)
10.3” x .020” (Minimum)
Diameter of Straightening Rolls: 1.97”
Number of Straightening Rolls: 21
Number of Turning Station Rolls: 54
Adjustable Upper Straightener Rolls
Feed Rate (Variable): 1.7 - 131 FPM
All Straightening Rolls are Powered
All Straightening Rolls are Backed Up
Feeding Directions: Right to Left

Equipped With:
Siemens CNC Control WIth CRT
(2) Straighteners w/ (1) Turning Station
Inlet Separation Device
Power Roller Frame Adjustment
Automatic Lubrication System
(2 ea) 30 HP DC Main Drive Motor
(4 ea) 2.5 HP AC Frame Adjustment Motor
Electrical Controls (Separate, Free Standing Panel)

Approximate Overall Dimensions: 220” LR x 95” Fb x 88” H
(Panel: 98” x 21” x 90” H) (Turn Station: 65” x 56” x 70” H)
Approximate Weight: 8,000 Lbs.
