Straight Side Double Crank Press

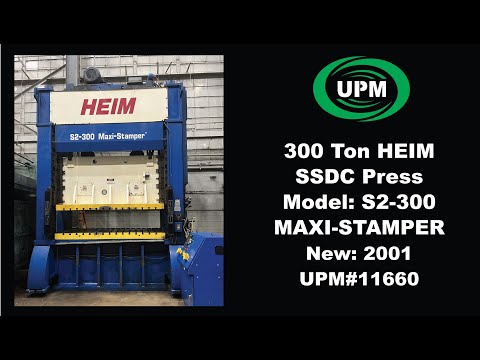

(1) Used 300 Ton Heim S2-300 Maxi Stamper Straight Side Double Crank Press

(1) Used 300 Ton Heim S2-300 Maxi Stamper Straight Side Double Crank Press

Have one to sell?
248-268-1603
sales@universalpress.com
$99,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Straight Side Double Crank Press
Manufacturer:
HEIM
Model:
S2-300 MS
Year:
2001
Stock #:
11660
Status:
For Sale

Description

(1) Used 300 Ton Heim S2-300 Maxi Stamper Straight Side Double Crank Press

Ton300 T
Bed L-R100 in
Bed F-B60 in
Stroke10 in
Shut Height32 in
Min Speed25 spm25 strokes/min.
Max Speed50 spm50 strokes/min.
Windows38 in
Dimensions148"L-R x 96"F-B x 228" Tall148"L-R x 96"F-B x 228" Tall
Weight94,000 lbs94,000 lbs

Serial# H-3939
Capacity: 300 Ton
Stroke Length: 10”
Adjustment: 10”
Shut Height: 32” Over Bolster (SDAU)
Bolster Size: 100” lr x 60” fb x 6” thick
Note: second bolster in photo not included.
Speed: 25 - 50 SPM

Equipped With:
Link Omnilink 5000 Control
Die Protection
Tonnage Monitor
50 HP Motor with AC Frequency Drive (Variable)
Recirculating Lubrication
T-SLots on 6” Centers
Vibro Mounts
Dual Palm Buttons

GA Drawing on File
