(1) Used 100 Ton Hydraulic Die Spotting Press
Have one to sell?
ConditionUsed
1 available
$49,500.00 USD

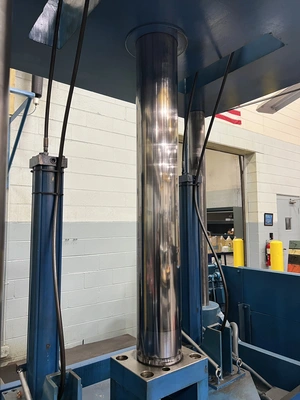

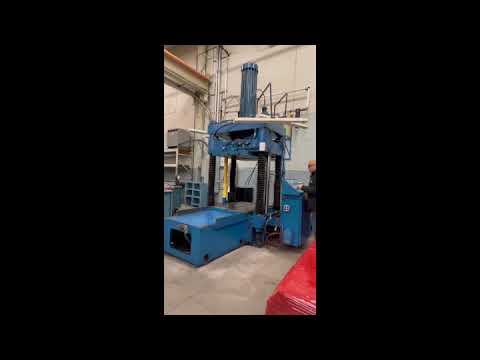

Used 100 Ton Hydraulic Die Spotting Press by HYDRAULIC. Features a 34” x 50” bed, 40” stroke, 42.5” daylight opening, and 30 HP hydraulic unit. Includes lower ejector, rollout shuttle table, and console control station. 3,000 PSI max.
All Specifications Subject To Verification
Approximate Tonnage: 100
Approximate Stroke: 40”
Approximate Daylight Opening: 42 1/2”
Platen Area: 34” L-R x 50” F-B
Distance Between Posts 46" lr x 28" fb
Roll Out Shuttle Table
Lower Ejector
Swivel Down Ram - Approx. 180 Degrees
Console Control Station
30 HP Hydraulic Unit
3,000 PSI Maximum
Approx Overall Height: 155”
Approx Floor Space: 142” fb x 72” lr
