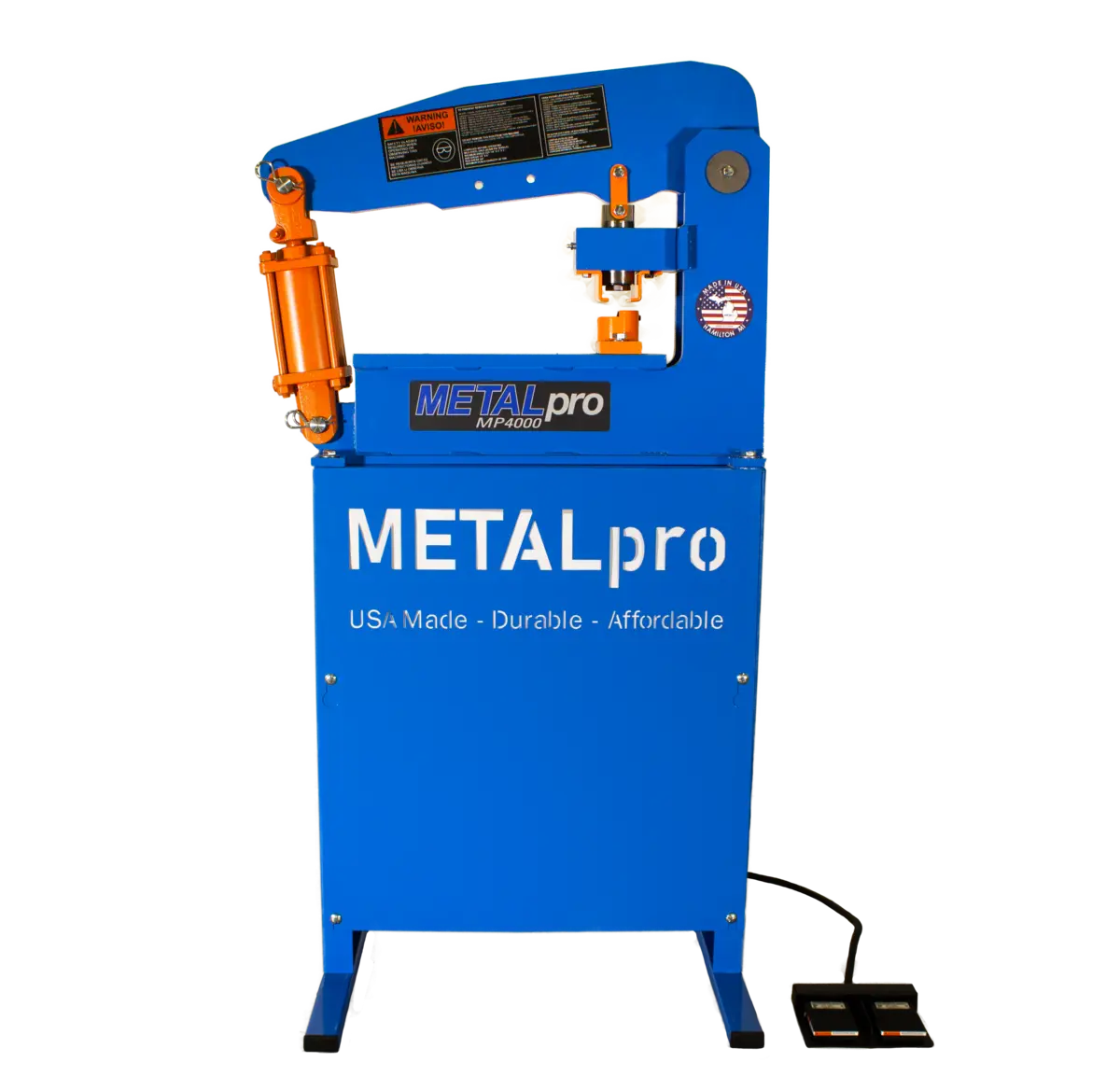

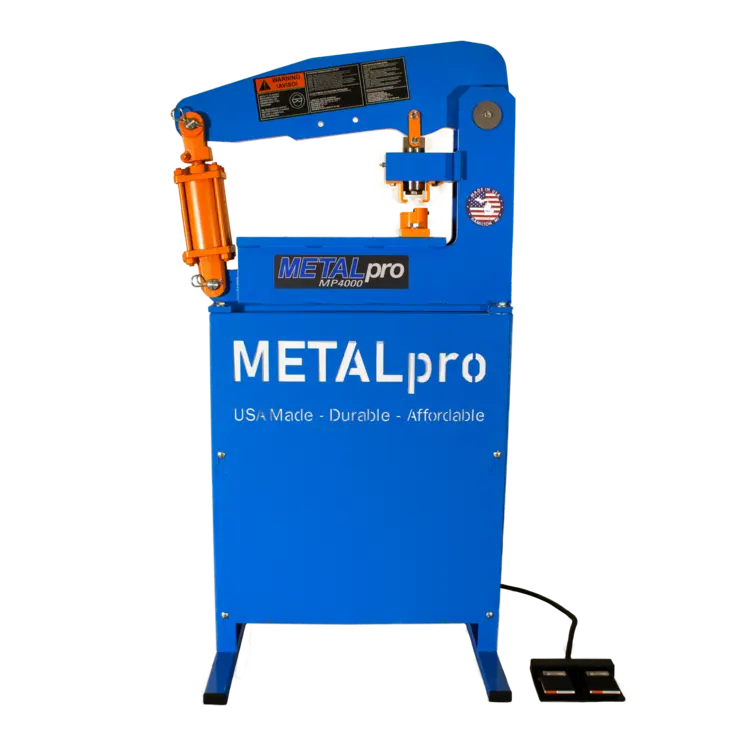

(1) New 40 Ton METALpro Model MP4000 Hydraulic Ironworker

APPLICATIONS
All in one ‘fabrication shop’ with capabilities in:
• Punching • Forming
• Shearing • Pressing
• Notching • Pipe notching
• Bending

BENEFITS
• The most cost effective 40 ton ironworker on the market
• Open work station allows for customization to fit your needs
• Plugs into standard 110V 20 amp outlet or generator
• Lightweight with small footprint
• 3 year warranty
• Simple, reliable and built to last

STANDARD FEATURES
• Punch capacity of 40 tons
• 3¾" throat depth
• 2" die holder, punch retaining nut and stripper
• Open work station
• Guarding complies with ANSI B11-8 standards
• Optional shears, brakes and custom tooling sold separately

SPECIFICATIONS – Rated on 65,000 PSI Tensile
Frame Dimensions
Width..................................24"
Height.................................58"
Length................................30½"
Weight................................395 pounds

Speed
Strokes per minute.............approximately 6-8
Motor..................................110V AC single phase, 1½ horsepower
Capacity.............................40 tons
Throat Depth......................3¾"
Punch.................................40 ton max capacity

Shear (optional/sold separately)
Flat bar...............................up to 3/8"
Angle..................................¼"x 3"x 3"
Rod.....................................¾"
Square................................5/8"
Hydraulics...........................2900 PSI
Oil capacity.........................1.5 US gallons

Accessories
Brake..................................20 tons
Notcher...............................optional ½, ¾, 1,1¼, 1½, 2 inch sch. 40
Picket tool...........................optional ½, 5/8, ¾ inch
Pressing.............................custom tooling available
