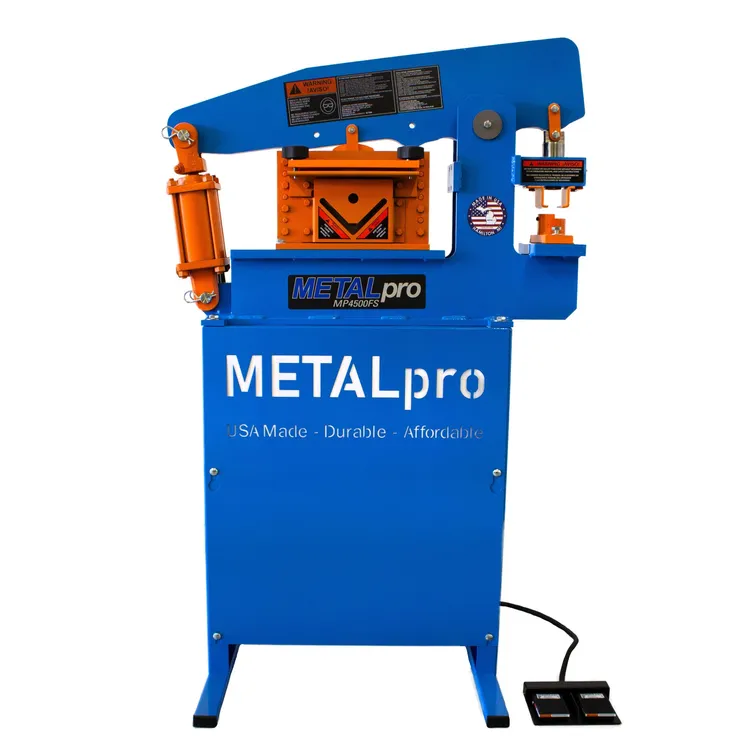

(1) NEW 45 Ton METALpro Hydraulic Ironworker

APPLICATIONS
All in one ‘fabrication shop’ with capabilities in:
• Punching • Forming
• Shearing • Pressing
• Notching • Pipe notching
• Bending

BENEFITS
• The most cost effective 45 ton ironworker on the market
• Made in the Hamilton, MI USA
• Plugs into standard 110V 20 amp outlet or generator
• Lightweight with small footprint
• 3 year warranty
• Simple, reliable and built to last

STANDARD FEATURES
• Punch capacity of 45 tons
• 3¾" throat depth
• 2" die holder, punch retaining nut and stripper
• Power cavity with 3-in-1 8 inch shear
• Guarding complies with ANSI B11-8 standards
• Accessories and custom tooling sold separately

SPECIFICATIONS – Rated on 65,000 PSI Tensile
Frame Dimensions
Width..................................24"
Height.................................59"
Length................................36½"
Weight................................550 pounds

Speed
Strokes per minute.............approximately 6-8
Motor..................................110V AC single phase, 1½ horsepower
Capacity.............................45 tons
Throat Depth......................3¾"
Punch.................................45 ton max capacity

Shear
Flat bar...............................up to 1/2"
Angle..................................¼" x 4"x 4"
Rod.....................................¾"
Square................................5/8"
Hydraulics...........................2900 PSI
Oil capacity.........................1.5 US gallons

Accessories
Brake..................................25 tons
Notcher...............................optional ½, ¾, 1,1¼, 1½, 2 inch sch. 40
Picket tool...........................optional ½, 5/8, ¾ inch
Pressing.............................custom tooling available
