(1) Used 100 Ton Sanki Hydraulic Spotting Press
Have one to sell?
ConditionUsed
1 available
$69,500.00 USD

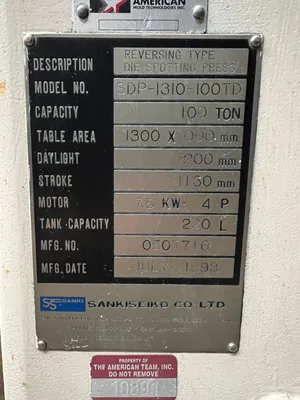

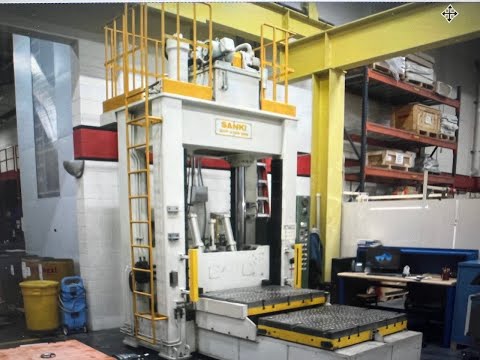

Used 100 Ton Sanki Hydraulic Spotting Press, model SPD1310-100TD, from 1993. Key specs include 100T capacity, 51"x39" bed, 38.4" stroke, and 41.2" daylight opening. Equipped with slide out bolster, wax injection, and light curtains. 480/3/60 voltage.
Capacity: 100 Ton
Bed & Ram Area: 51” x 39”
Stroke: 38.4”
Daylight Opening: 41.2”
Max Mold Weight on Table: 12,000#
Max Upper Platen Mold Weight: 6,000#
Motor: 10 HP
Voltage: 480/3/60
Floor Space Required: 160” x 105” x 172” tall
EQUIPPED WITH:
Slide out Bolster
Flip out Ram (full 180º)
Upper and Lower Bolster Plates drilled and tapped 3/4”-10 on 2” centers
Wax Injection
Light curtains front & rear of press
One Shot Way Lube
