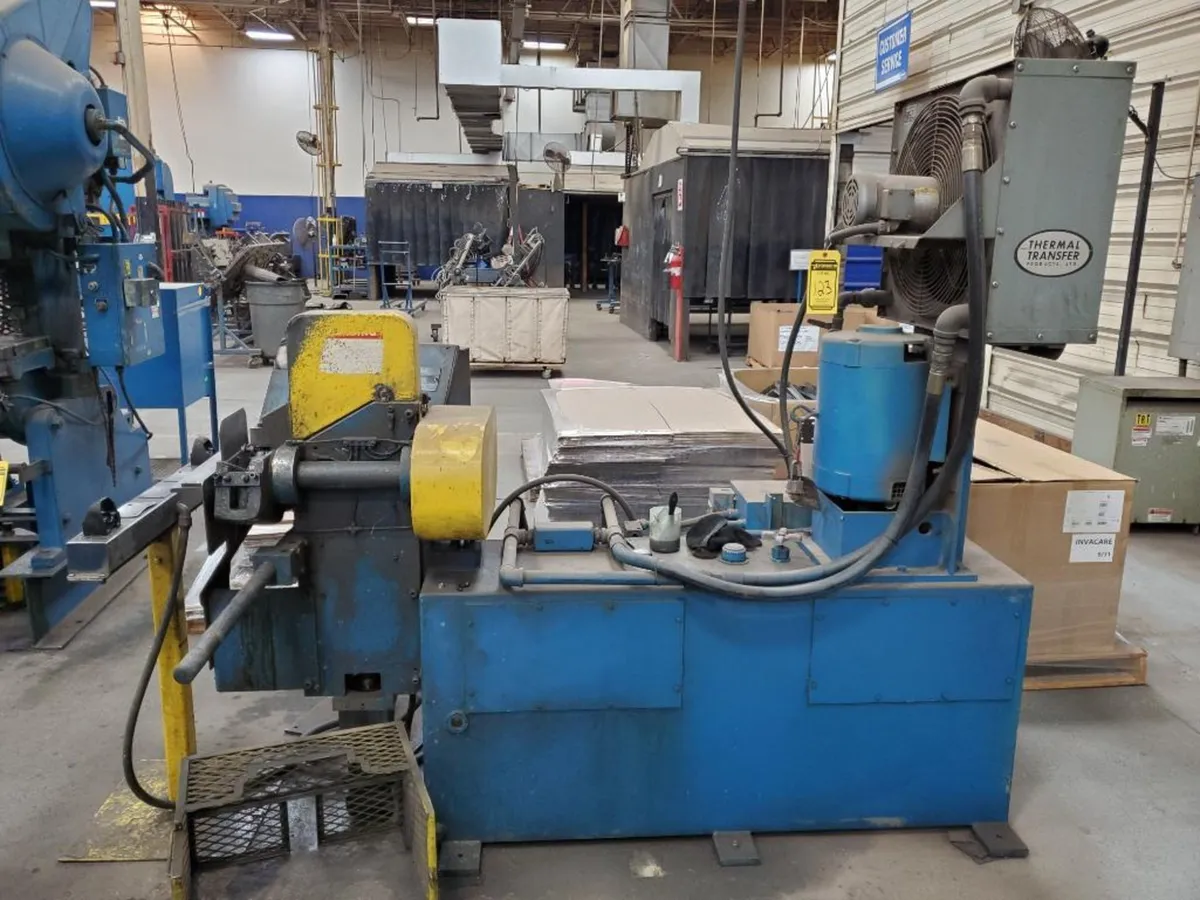

(1) Used 1 1/2” Teledyne Pines Vertical Hydraulic Tube Bender
Have one to sell?
ConditionUsed
1 available
$7,950.00 USD
1989 Teledyne Pines M-94604 Dial-A-Bend tube bender for sale. Features 1.5" capacity, 140º max bending angle, and capacity for 1500 bends per hour. Powered by a 20 HP motor. Operating at 2000 PSI. Serial #44361-89098.
Serial# 44361-89098
Capacity: 1 1/2” OD Capacity x .065” wall thickness
Digital Dial a Bend Control
Bending Angle Max: 140º
2000 PSI Operating Pressure
1500 Bends per hour
Max Centerling Radius: 4.5” - 90º or less
Min Centerline Radius: 2 to 3 times tube diameter
Work Height: 40”
Motor: 20 HP
Votage: 230/460v / 3ph / 60 cycle
Full Load Amp Draw: 28
