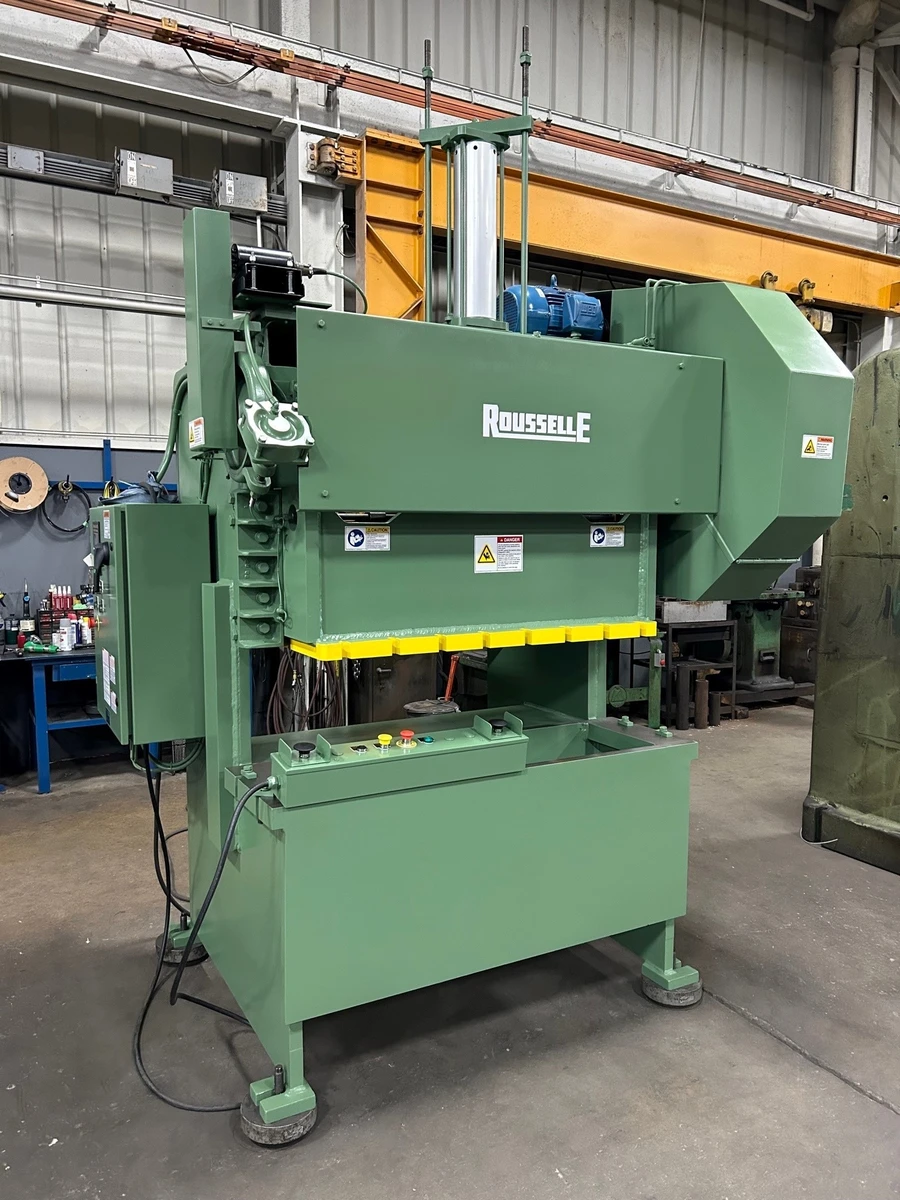

(1) NEW 60 Ton Rousselle 6K60F Double Crank Gap Frame Presses

OBI / Gap Frame Press

Overview
Description
Specifications

Manufacturer:

ROUSSELLE

Model:

6K60F

Condition:

New - In-Stock

Year:

2025

Stock #:

11884

Introducing the new 2025 Rousselle 6K60F 60 Ton Double Crank Gap Frame Press. With a 60" x 18" bed, 2" stroke, and speeds up to 110 strokes/min, it's equipped with an air clutch/brake, automatic oil lubrication, and Link 5100 MPC control. In stock, ready to ship.

ImperialMetric

Ton	60 T
Bed L-R	60 in
Bed F-B	18 in
Stroke	2 in
Shut Height	10.5 in
Speed (max)	110 strokes/min.	110 strokes/min.
OBI Single Double	Double Crank	Double Crank
Weight	9500#	9500#

Capacity: 60 Ton
Stroke: 2”
Adjustment: 3” (manual)
Bed Area: 60” lr x 18” fb
Bolster Size: 60” lr x 18” fb x 2” thick (equipped with plain bolster plate)
Slide Area: 49.5” lr x 16” fb
Shut Height over Bed: 12.5”
Shut Height ove Bolster: 10.5
Depth of Throat: 10”
Width of Opening thru Back: 52.5”
Floor to top of Bed: 34”
Floor to top of Bolster: 36”
Air Clutch and Brake
Air Counter Balance
Control Type: Link 5100 MPC
Motor 5 HP
Operating Station: Dual Palm Button
Lubrication: Automatic Oil
