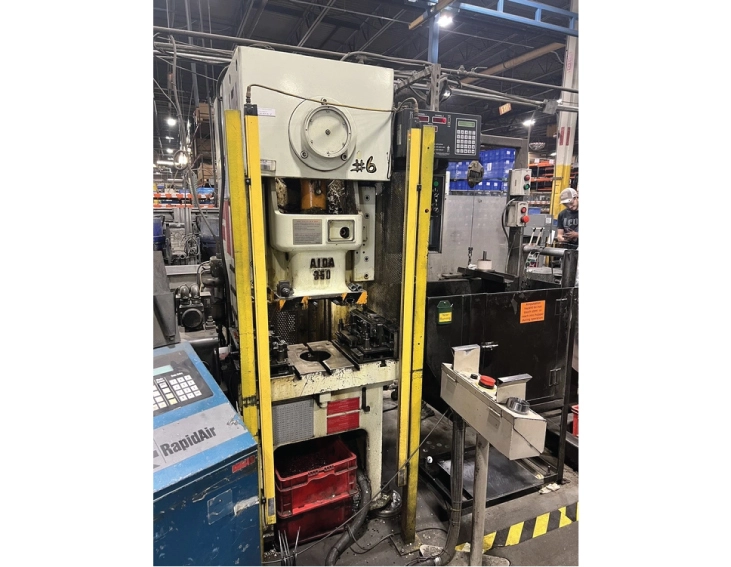

(1) Used 38 Ton Aida Model NC1-350(1)E Single Crank Gap Frame Press

(1) Used 38 Ton Aida Model NC1-350(1)E Single Crank Gap Frame Press

Have one to sell?
248-268-1603
sales@universalpress.com
ConditionUsed
1 available
$24,500.00 USD
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
AIDA
Model:
NC1-350(1)E
Condition:
Excellent
Year:
2013
Stock #:
11928
Status:
For Sale
Serial #:
10403-0510

Description

2013 Aida NC1-350(1)E, 38 Ton Gap Frame Press. Features include AIDA Press Control, dual palm button stand, LINK 1100 tonnage monitor, and hydraulic overload. Bed: 28.7"x13.1", stroke: 1.9", speed: 90-150 SPM, single crank operation.

Ton38 T
Bed L-R28.7 in
Bed F-B13.1 in
Stroke1.9 in
Adjustment1.01.0
Shut Height8.2 in
Speed (max)150 strokes/min.150 strokes/min.
OBI Single DoubleSingle CrankSingle Crank

Capacity: 38 TOn
Blanking Capacity: 30 Ton
Stroke: 1.9"
Adjustment: 1.9"
Die Height: 8.2" (sdau over bolster)
Bed Area: 28.7" lr x 13.1" fb
Slide Area: 14.9" lr x 11.8" fb
Speed: 90 - 150 SPM
Main Motor: 5HP

AIDA Press Control
Dual Palm Button Stand
LINK System 1100 Tonnage Monitor
Hydraulic Overload
Inch / Single / Continuous Modes
