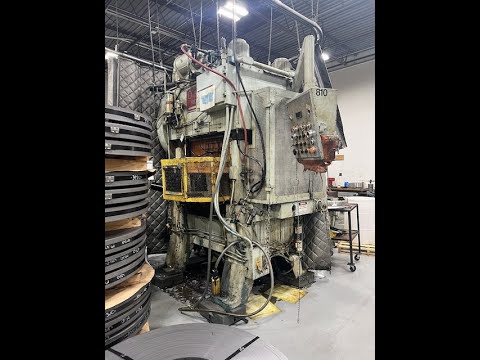

(1) Used 100 Ton Oak Model 42-LP-100 High Speed Straight Side Double Crank Press

(1) Used 100 Ton Oak Model 42-LP-100 High Speed Straight Side Double Crank Press

Have one to sell?
248-268-1603
sales@universalpress.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
High Speed Press
Manufacturer:
OAK
Model:
42-LP-100
Condition:
Good
Year:
1984
Stock #:
12000
Status:
For Sale
Serial #:
42-LP-100-959

Description

(1) Used 100 Ton Oak Model 42-LP-100 High Speed Straight Side Double Crank Press

Ton100 T
Bed L-R40 in
Bed F-B34 in
Stroke1.5 in
Adjustment33
Shut Height15.5 in
Speed0 strokes/min.0 spm
Windows24 in
Dimensions62.5" lr x 57" fb x 137" tall Approx62.5" lr x 57" fb x 137" tall Approx
Weight25,700#25,700#

Capacity: 100 Ton
Stroke: 1.5"
Adjustment: 3"
Slide Withdrawl: 5"
Shut Height on 5" thick bolster: 15.5" max - 12.5" min
Bed Area: 40" lr x 34" fb
Bolster Area: 40" lr x 34" fb
Slide Area: 40" rl x 30" fb
Opening In Bed: 17" rl x 12.5 fb
Speed: 133 - 385 spm
Windows: 24" wide
Distance floor to top of bolster: 42"

Mechanical Crank Style Feeder
