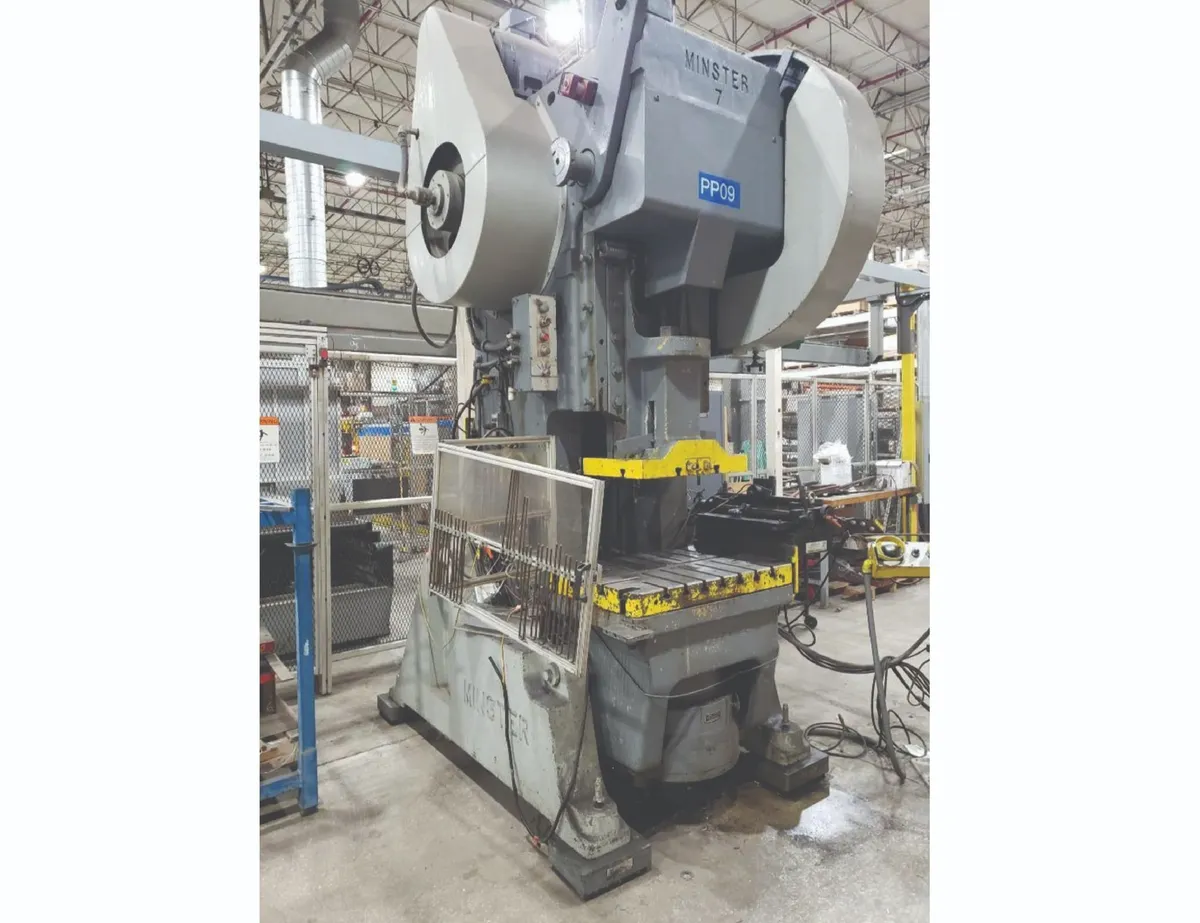

(1) Used 75 Ton Minster #7 Single Crank Back Geared OBI Press w/ cushion
Have one to sell?
ConditionUsed
1 available
$34,500.00 USD
Used 75 Ton Minster #7 OBI Press features 36x24 in bed, 6 in stroke, and max speed of 40 SPM. Equipped with die cushion, palm buttons, air clutch, brake, and counterbalance. Custom stroke at 4.5 in. Ideal for precise operations. 1968 model.
Capacity: 75 Ton
Stroke: 6"
Adjustment: 4"
Shut Height: 19" (slide down adjustment up over bed)
Bed Area: 36" lr x 24" fb
Speed: 40 SPM
T Slots in Ram & Bolster
Palm Buttons
Air Clutch
Air Brake
Air Counterbalance
Die Cushion Capacity: 1.3 ton @ 10 PSI / 13 Ton @ 100 PSI
Custom Stroke: 4.5"
Cushion Cylinder Diameter: 18"
Bed Opening: 19" lr x 14: fb
Used 75 Ton Minster #7 OBI Press features 36x24 in bed, 6 in stroke, and max speed of 40 SPM. Equipped with die cushion, palm buttons, air clutch, brake, and counterbalance. Custom stroke at 4.5 in. Ideal for precise operations. 1968 model.
Imperial
| Ton | 75 T |
| Bed L-R | 36 in |
| Bed F-B | 24 in |
| Stroke | 6 in |
| Adjustment | 4 in |
| Shut Height | 19 in |
| Speed (max) | 40 strokes/min. |
| OBI Single Double | single |
| Cushions | yes |
| Air Clutch (Yes/No) | Yes |
| Dimensions | 6'6"W x 7'5"D |
Capacity: 75 Ton
Stroke: 6"
Adjustment: 4"
Shut Height: 19" (slide down adjustment up over bed)
Bed Area: 36" lr x 24" fb
Speed: 40 SPM
T Slots in Ram & Bolster
Palm Buttons
Air Clutch
Air Brake
Air Counterbalance
Die Cushion Capacity: 1.3 ton @ 10 PSI / 13 Ton @ 100 PSI
Custom Stroke: 4.5"
Cushion Cylinder Diameter: 18"
Bed Opening: 19" lr x 14: fb
