Equipment
Presses
OBI / Gap Frame Press
(1) Used 150 Ton Bliss Model C-150 Geared Single Point Gap Frame Press

(1) Used 150 Ton Bliss Model C-150 Geared Single Point Gap Frame Press

Have one to sell?
248-268-1603
sales@universalpress.com
$49,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
BLISS
Model:
C-150
Condition:
Good
Year:
1985
Stock #:
12106
Status:
For Sale
Serial #:
H-70300

Description

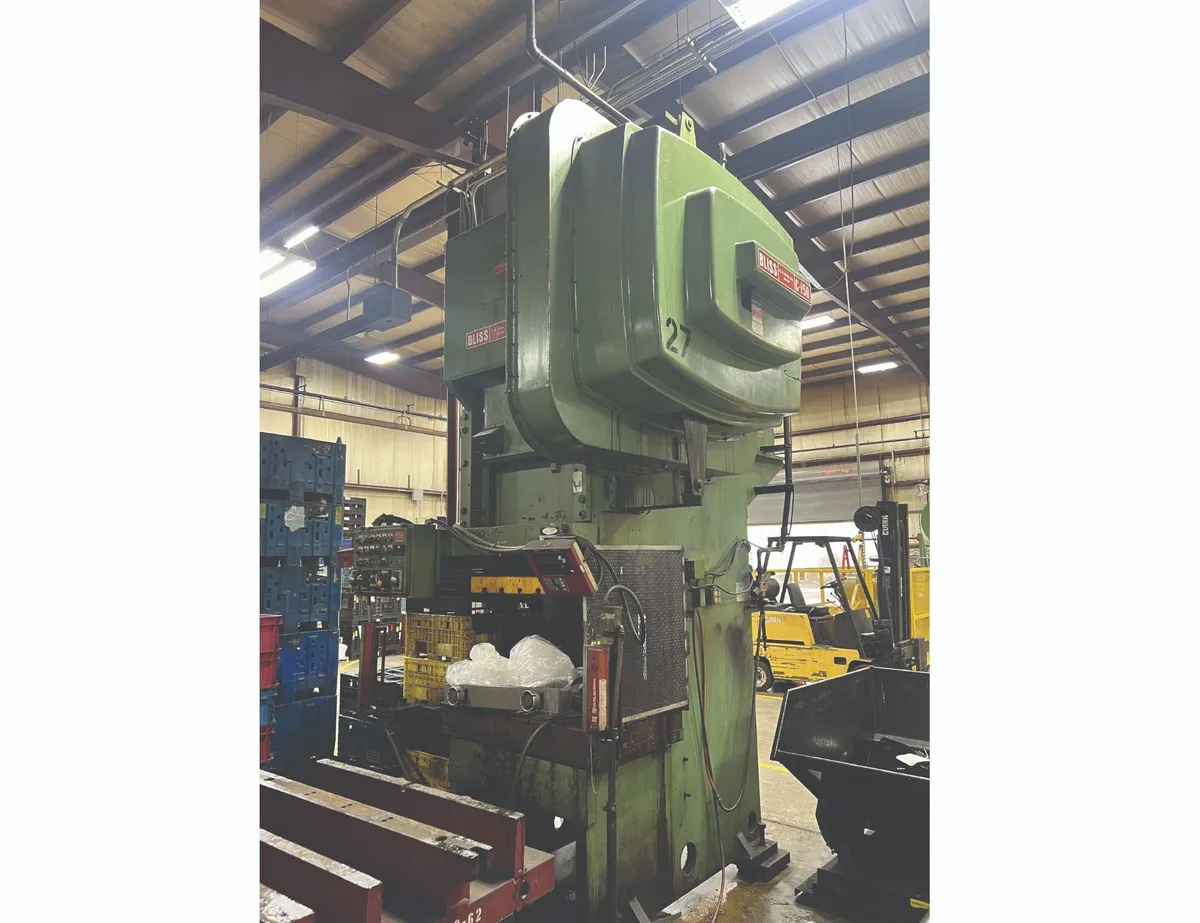

1985 BLISS C-150, 150 Ton OBI/Gap Frame Press. Features a 50"x30" bed, 8" stroke, and adjustable speed of 30-60 SPM. Includes air clutch for reliable performance. Ideal for various industrial applications.

Ton150 T
Bed L-R50 in
Bed F-B30 in
Stroke8 in
Adjustment4.5 in
Shut Height22 in
Speed (max)60 strokes/min.60 strokes/min.
Speed (min)30 strokes/min.30 strokes/min.
Air Clutch (Yes/No)YesYes
Dimensions107 lr x 97 fb x 176 tall107 lr x 97 fb x 176 tall
Weight49,000 lbs49,000 lbs

Capacity: 150 Ton
Bed Area: 50" lr x 30" fb
Bolster Plate: 4.5" thick (t-slotted)
Ram Area: 34" lr x 24" fb
Stroke: 8"
Adjustment: 4.5"
Speed: 30 - 60 SPM
Shut Height: 22"
Floor to Top of Bed: 37”
Floor to Top of Bolster: 41.5”
