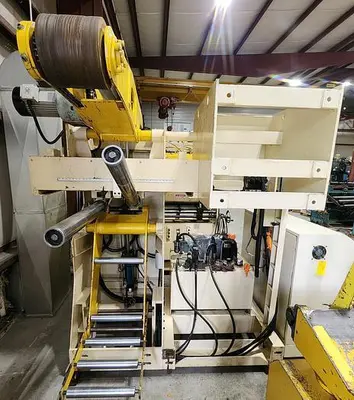

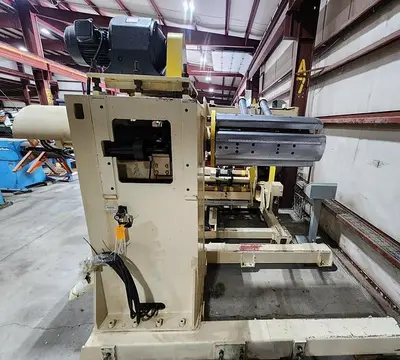

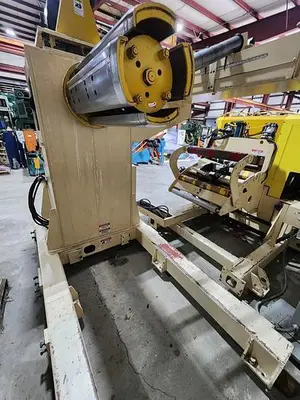

(1) 15,000 Lbs x 30" x .100" Coe Space Master Series 3 Compact Coil Line

Machine Specifications:
Feed Direction: Right to Left
Pass Line: 45"
Voltage: 460

Material Specifications:
M.C.R.S. - Max: 0.100" thick @ 30" wide
55 HSLA - Min. 0.098" thick @ 14" wide
55 HSLA - Max: 0.250" thick @ 9" wide

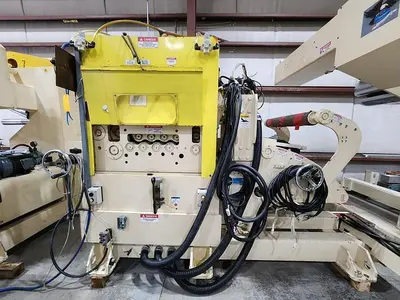

Feeder-Straightener Specifications:
Full Body Width: 30"
Feed Drive: 15 KW
Drive Ratio: 14:1 Ratio
Acceleration: 20 Feet/Sec/Sec
Roll Speed: 160 Feet/Minute
Feed Accuracy: +/- 0.005"

SpaceMaster Compact Coil Line Standard Specifications

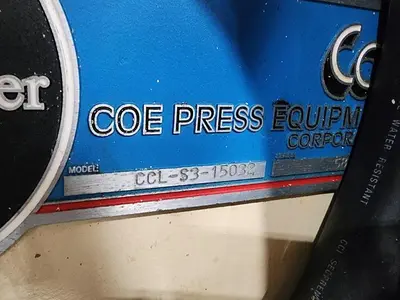

Model: CCL-S3-15032
Material Thickness: .250" Max.
Max. Material Width: 30"
Min. Material Width: 4.00"
Thickness x Width: .250"x9" Wide
Thickness x Width: .100x30" Wide
Pinch Rollers: 2 Rolls - 4.4" Diameter
Feeder Rollers: 2 Rolls - 5.7" Diameter
Straightener Rollers: 8 Rolls - 3.5" Dia. - 4 over 4
Production Speed: 80 FPM
Coil Weight: 15,000 Lbs
Coil I.D.: 20" Nominal, 18.5" - 20.5" Expansion Range
Coil O.D.: 72" Maximum
0-17 RPM Mandrel Speed
Single End Reel Configuration
Heavy Duty Backplate
Four(4) Pad Mandrel Construction

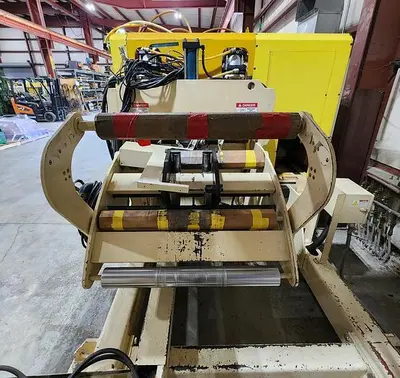

Upper Dual Roll Coil Guide Assembly
Lower Dual Roll Coil Guide Assembly
Expansion Type: Wedge Type by Hydraulic Cylinder
Hold Down Drive: A.C. Variable Speed Inverter Duty
Coil Guiding: Dual Roll Coil Guide Assembly, Upper/Lower
Uncoiler Drive: A.C. Variable Speed Inverter Duty
Passline Height: 45", +/- 4"
Loop Control: Photo-eye Loop Control
Feeder Drive: Closed Loop Yaskawa Servo Motor

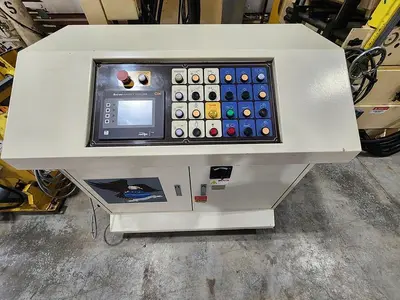

Machine Interface: ServoMaster MMI
Threading System: Threading Assist Roll & Threading Debender Roll
