Equipment
Presses
OBI / Gap Frame Press
(1) Used 200 Ton Bliss Model C-200 Single PointGap Frame Press

(1) Used 200 Ton Bliss Model C-200 Single PointGap Frame Press

Have one to sell?
248-268-1603
sales@universalpress.com
$69,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
BLISS
Model:
C-200
Condition:
Good
Year:
1998
Stock #:
12120
Status:
For Sale
Serial #:
HN-71744

Description

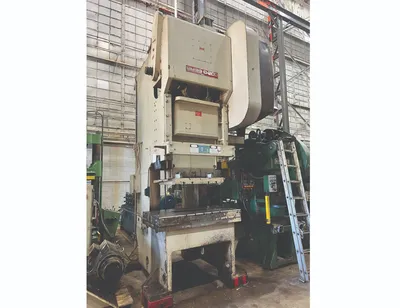

(1) Used 200 Ton Bliss Model C-200 Single Point Gap Frame Press

Ton200 T
Bed L-R58 in
Bed F-B34 in
Stroke8 in
Adjustment4.5 in
Shut Height24 in
Speed (max)60 strokes/min.60 strokes/min.
Speed (min)30 strokes/min.30 strokes/min.
CushionsNoNo
Air Clutch (Yes/No)YesYes

Capacity: 200 Ton
Bed Area: 58" lr x 34" fb
Ram Area: 36" lr x 28" fb (T-slotted)
Bolster: 58" lr x 34" fb x 5" thick (T-slotted)
Stroke: 8"
Slide Adj: 4.5" (Powered)
Shut Height to Bed: 24" (Slide Down Adjustment Up over bed)
Speed: 30 - 60 SPM (Variable)
Distance Between Uprights thru back: 31.75"
Floor to Top of Bed: 37”
Floor to Top of Bolster: 48”

Air Clutch & Brake
Wintriss Smartpac Free Standing Control
Single, Inch and Continuous
Dual Palm Buttons
Vibro Mounts - 6” High
System 1100 Tonnage Monitor
30 HP Dynamic Eddy Current Motor
