| Ton | 100 T | |
| Bed L-R | 80 in | |
| Bed F-B | 30 in | |
| Stroke | 6 in | |
| Adjustment | 4 in | |
| Shut Height | 16.25 in | |
| Min Speed | 50 spm | 50 strokes/min. |
| Max Speed | 50 spm | 50 strokes/min. |
| Windows | 14 in | |
| Dimensions | 96' LR X 38.5" FB | 96' LR X 38.5" FB |
| Weight | 14,000 | 14,000 |

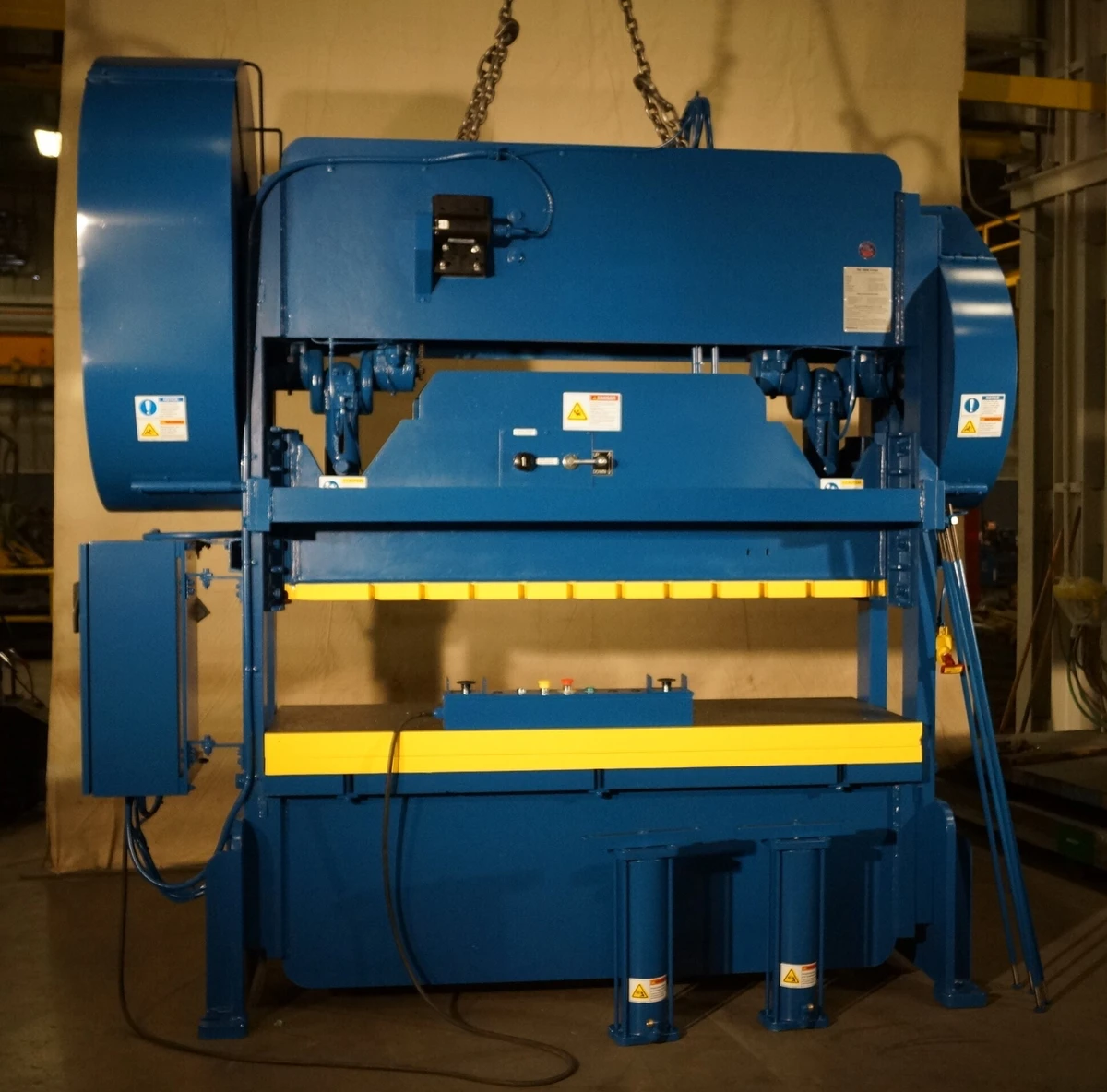

**Photo shown is just an example, not actual press**
Delivery: 12 - 14 weeks from time of order and receipt of deposit
Capacity: 100 Ton
Bed Area: 80" lr x 30" fb
Ram Area: 79" lr x 20" fb
Stroke: 6"
Adjustment: 4"
Shut Height: 16.25" SDAU over bolster
Bolster Thickness: 3"
Windows: 14"
Speed: 50 SPM
Floor to top of bolster: 33"
Link 5100 MPC Control
Motor: 10 HP
Automatic Lubrication System
Air Counter Balance
Air Clutch and Disc Brake
Inch / Single / Continuous Modes
Options: Penestal Stand (w/ 15' cable) for operator station: $721.00
Isolation Moounts: 915.00
Bolster Drill/Tap (per hole) $33.00
T-Slotting of Bolster or Ram (per foot) $165.00
Terms: 20% down with order, balance prior shipment.
