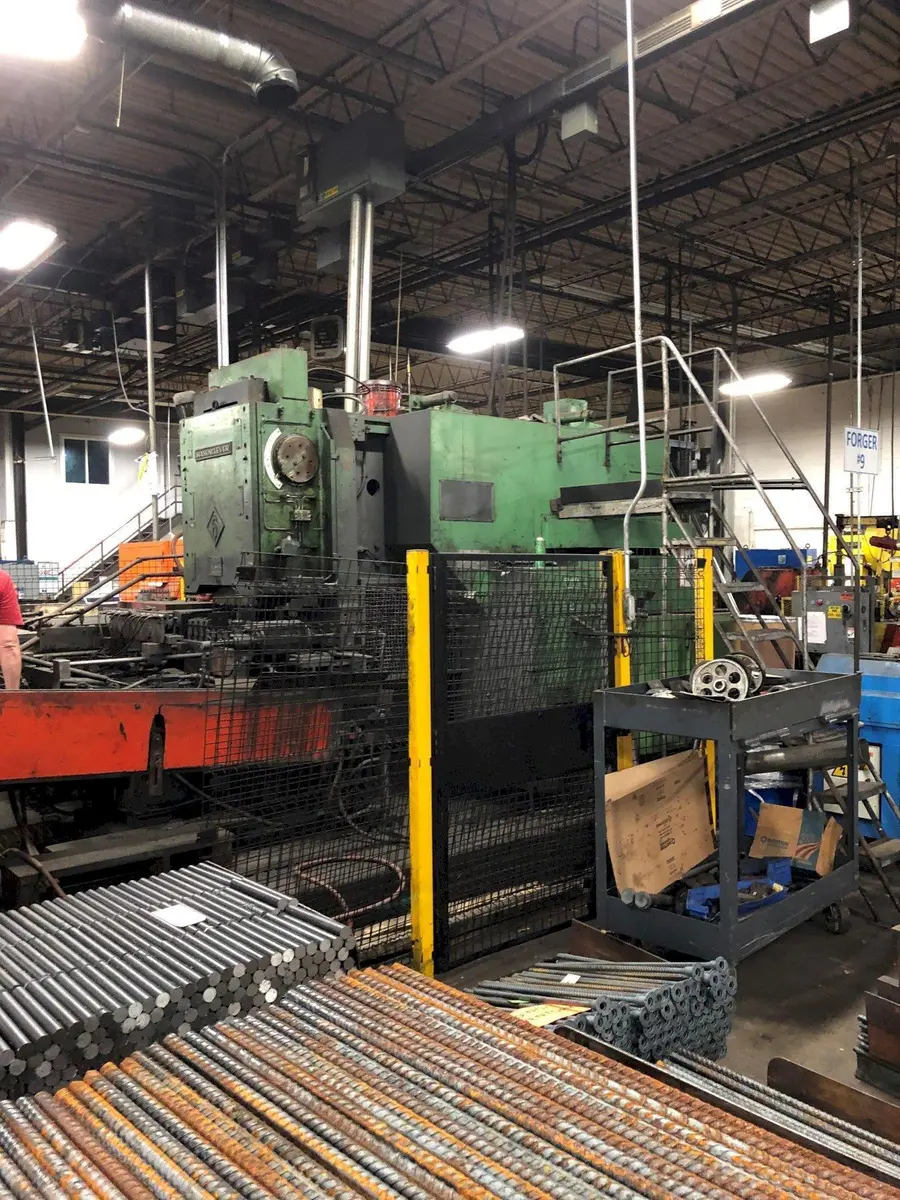

250 Ton Hasenclever WSHK 250 Forging Press

Nominal Capacity: 2"
Upsetting Power (MP): 250
Gripping Power, Vertical Slide (MP): 315
Stroke: 245 mm
Gather: 140 mm
Strokes Per Minute: 53
Motor: 15 KW
Die Size - Width: 400 mm (15.75")
Die Size - Depth: 315 mm (12.4")
Die Size - Thickness: 125 mm (5")
Overall Dimensions: 2700 mm x 2200 mm x 2800 mm (106" x 87" x 110")

WITH PARTS FEEDER

Main Machine:

10’2” L X 7’5” W X 9’4” H and it weighs 43,090 lbs.

Electrical Cabinet/Console:

6’3” L X 4’3” W X 6’9” H and it weighs 1,473 lbs.

Feeder:

8’4” L X 5’5” W X 6’8” H and it weighs 3,268 lbs.

Front End:

4’8” L X 4’10” W X 4’1” H and it weighs 1,128 lbs.

Guards Pallet:

9’3” L X 8’3” W X 6’7” H and it weighs 1,993 lbs.
