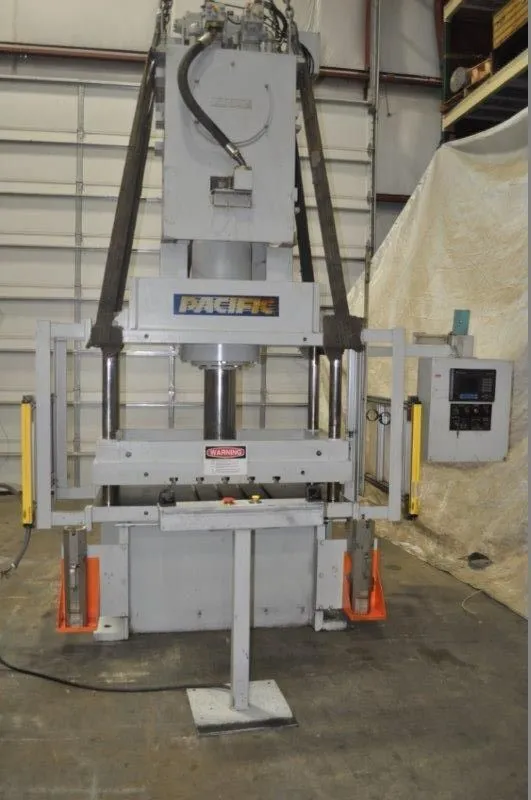

(1) Used 60 Ton Pacific 4-Post Hydraulic Press
Have one to sell?
ConditionUsed
1 available
Used 60 Ton Pacific 4-Post Hydraulic Press, Model 60 CX 50/30, from 2007. Features include 60" x 30" bed, 20" stroke, 25" daylight, and T-slotted ram & bolster. Includes palm buttons, light curtains, and a 70-gallon tank with a 10HP motor.
Capacity: 60 Ton
Stroke: 20"
Daylight: 25"
Ram Bore Diameter: 7.5"
Bed Area: 60"LR x 30"FB
Ram Area: 60"LR x 30"FB
T-Slotted Ram & Bolster
Palm Buttons
Light Curtains
70 Gallon Tank
Motor: 10HP 230/460/60/30 1760 RPM
Used 60 Ton Pacific 4-Post Hydraulic Press, Model 60 CX 50/30, from 2007. Features include 60" x 30" bed, 20" stroke, 25" daylight, and T-slotted ram & bolster. Includes palm buttons, light curtains, and a 70-gallon tank with a 10HP motor.
Imperial
| Ton | 60 T |
| Bed L-R | 60 in |
| Bed F-B | 30 in |
| Stroke | 20 in |
| Daylight Opening | 25 in |
| Daylight Opening | 25 in |
| Dimensions | 107"LR x 51"FB x 140" Tall |
| Weight | 12,000 lbs. |
Capacity: 60 Ton
Stroke: 20"
Daylight: 25"
Ram Bore Diameter: 7.5"
Bed Area: 60"LR x 30"FB
Ram Area: 60"LR x 30"FB
T-Slotted Ram & Bolster
Palm Buttons
Light Curtains
70 Gallon Tank
Motor: 10HP 230/460/60/30 1760 RPM
