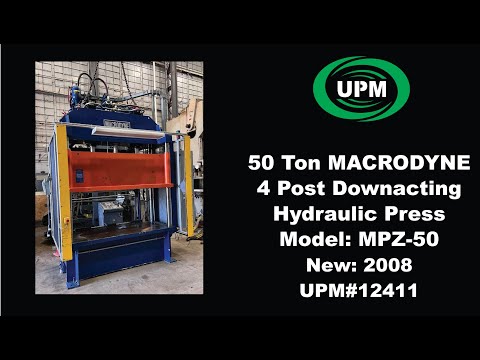

(1) Used 50 Ton Macrodyne Model MPZ-50 4-Post Hydraulic Press

Pressing Force: 50 Ton
Maximum Return Force: 1.5 Ton
Usable Bed Size: 72"LR x 30" FB
Usable Slide Size: 72"LR x 30"FB
Distance Between Columns: 72"LR x 22"FB
Open Daylight: 36"
Closed Daylight: 16"
Stroke: 20"

Speeds:
Approach Speed: 19.5"@5.0"/Second = 3.90 Sec.
Pressing Speed: 0.5"@0.5"/Sec. = 1.00 Sec.
Return Speed: 20.0"@5.0"/Sec. = 4.00 Sec.
Shifting Time Etc. = 1.00 Sec.
Total Dry Cycle = 9.90 Sec.

Hydraulic System Operating Pressure: 2,600 PSI

Electrical: 480V/3PH/60Hz

Controls: Allen Bradley w/Panelview 600
Control Features: Programmable Pressing Speed, Slide Position
and Monitoring via Position Tranducer, Multi-Mode Capability,
Programmable Dwells, Jog Function, Security Screen, Fault Diagnostics
