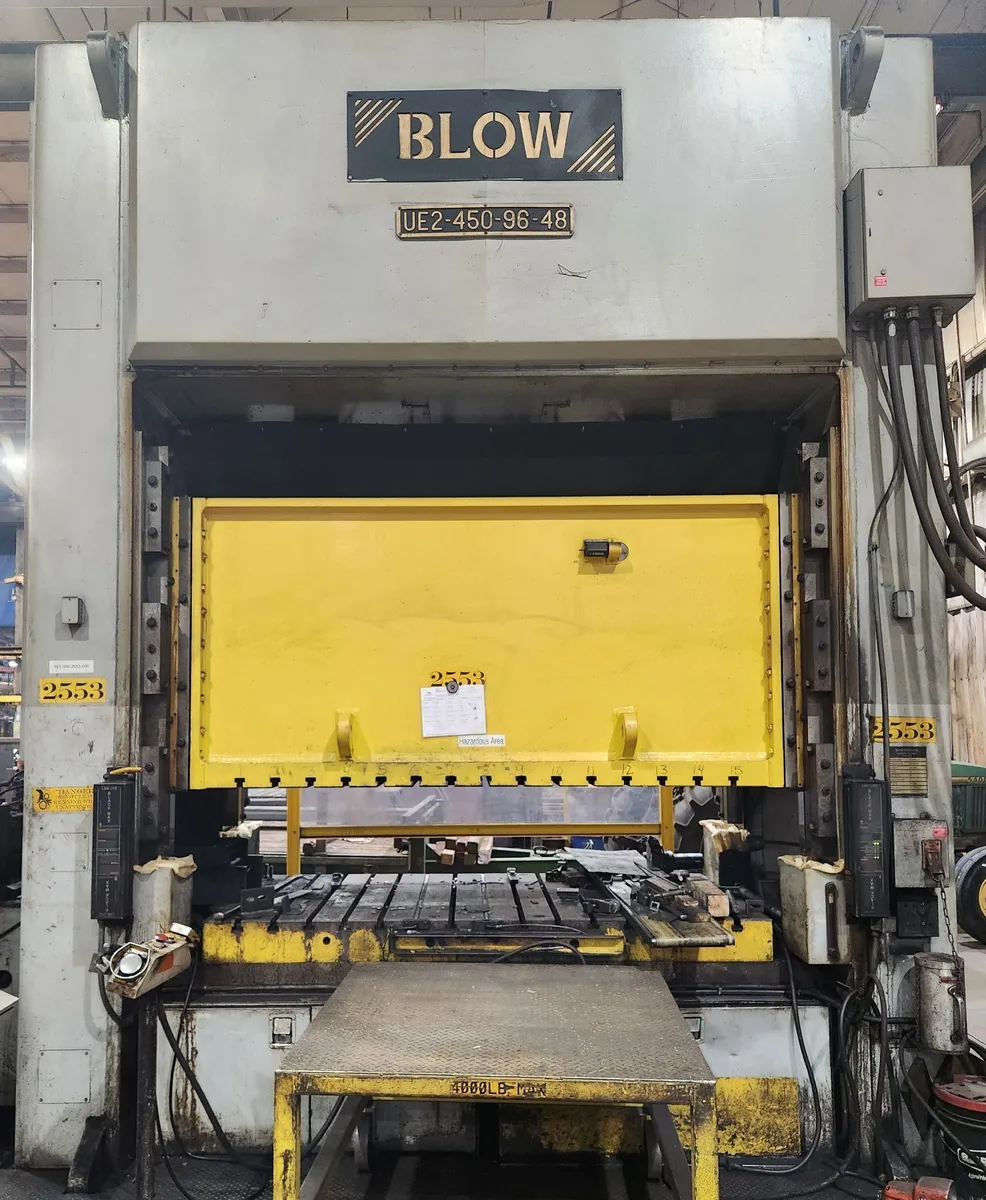

(1) Used 450 Ton Blow 96" x 48" Straight Side Double Crank Press
Have one to sell?
ConditionUsed
1 available
Used 450 Ton Blow Straight Side Double Crank Press, Model UE2-450-96-48, 2004. Features a 96"x48" bed, 10" stroke, 20-60 SPM speed range, and 50 HP motor. Specs include 8" adjustment and 20" shut height. Approximate weight is 130,000 lbs.
Capacity: 450 Ton @ 1/4" ABDC
Bed Area: 96" lr x 48" fb
Stroke: 10"
Adjustment: 8"
Shut Height: 20" (Slide down adjustment up over bolster)
Speed: 20 - 60 SPM
Windows: 37" wide x 20" high
Link 5000 w/ Allen Bradley Speed Control
Main Motor: 50 HP
Approx Press Weight: 130,000#
