(1) Used 4000 Ton Williams & White 200" x 96" 4 Post Downacting Hydraulic Press
Have one to sell?
ConditionUsed
1 available

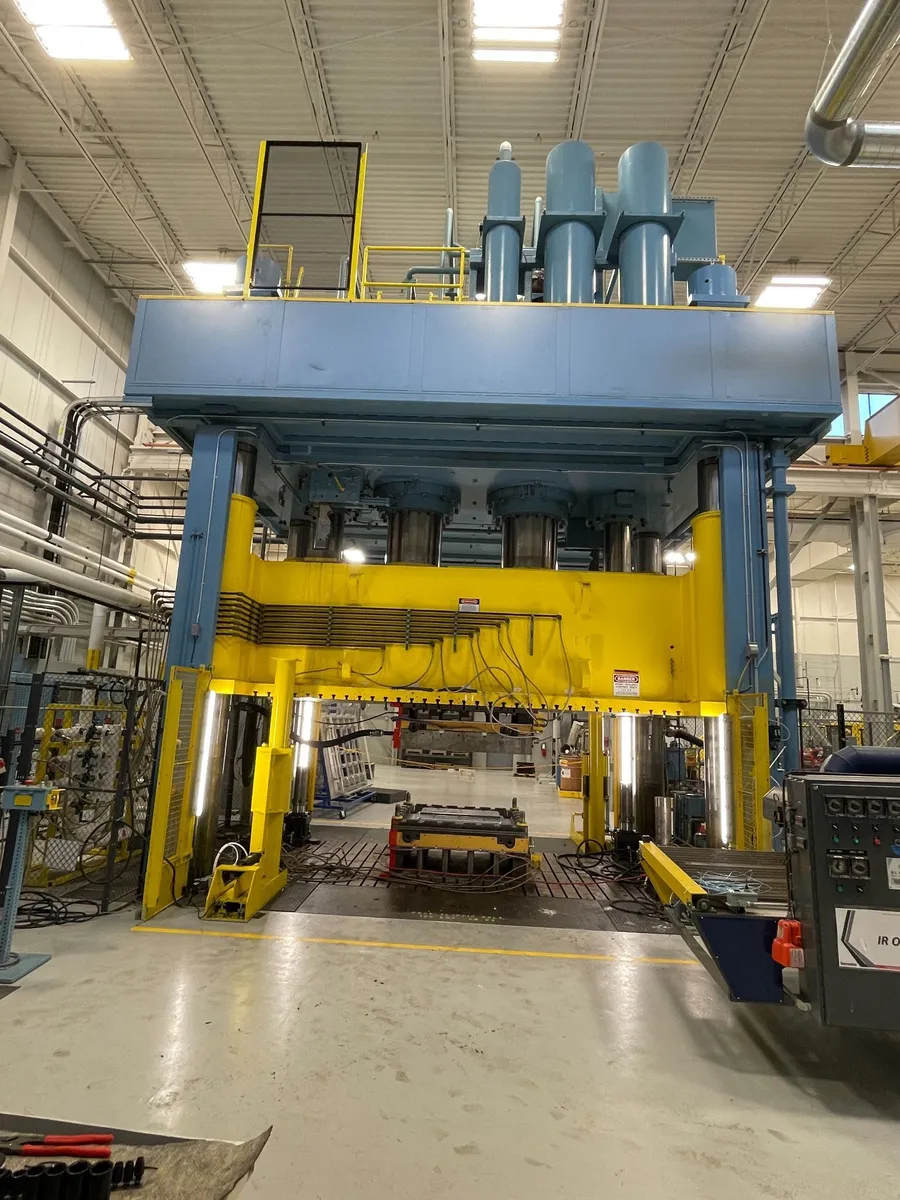

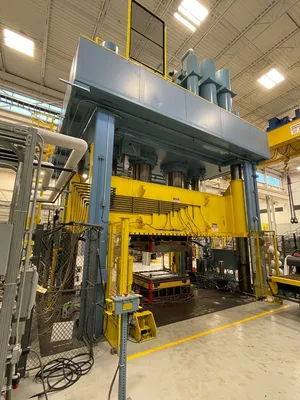

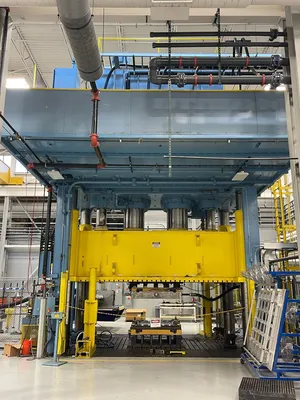

Powerful used Williams & White H-4000-200-96 hydraulic press: 4000 ton capacity, 200"x96" bed, 60" stroke, and 1000 ipm speed. Ideal for heavy-duty applications, featuring updated controls. In plant under power for immediate inspection.
Capacity:
Pressing: 4000 Ton
Stripping: 400 Ton
Net lift @ Fast Open: 30 Tons
Bed and Ram Area: 200" lr x 96" fb
Distance Between Posts: 208" lr x 104" fb
Stroke: 60"
Daylight Opening: 100"
Speeds:
Fast Close: 1000 IPM
Intermediate Pressing: 25 - 275 IPM (to 1000 ton)
Pressing: 7 - 70 IPM
Stripping: 30 - 200 IPM
Fast Open: 900 IPM
Rolling Bolster thru Window

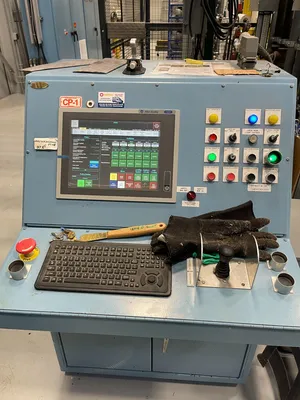

Updated Press Controls
Overall Height Above Floor: 30' 10"
Approx Overall Weight: 900,000#
Drawings on file
**LIKE NEW CONDITION**
**IN PLANT UNDER POWER**
