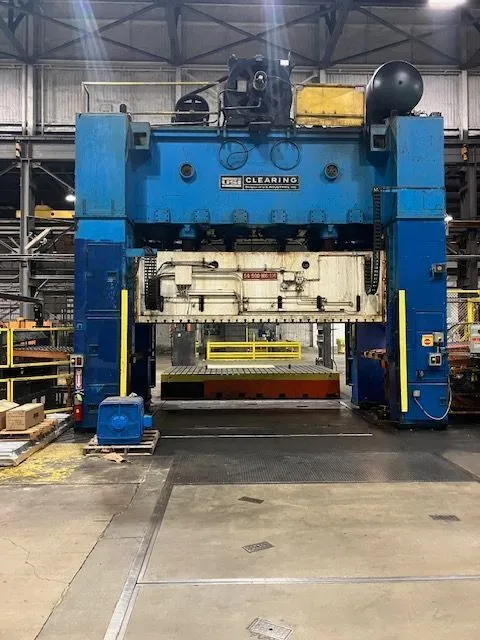

(1) Used 500 Ton Clearing Press and Blanking Line

Tonnage: 500 Ton
Bed Area: 186" x 108"
Slide Adjustment: 20"
Pass Line: 30
Shut Height Min: 28"
Shut Height Max: 48"
Bolster T-Slots: 6
Stroke: 12"
Speed: 15-50 SPM
Distance Between Gibs: 90"
Bed to Gibs: 186"
Bed Above Floor: 28"
Bolster Thickness: 28"
Scrap Shed: U/C Side
Window Size: 72"
Gauge Min: 0.0024
Gauge Max: 0.11
Feeder Width: 78"
Feeder Stroke: 120"
Can Run Aluminum
Coil Width Min: 24"
Coil Width Max: 72"
Coil Weight Max: 75,000 Lbs
Coil OD Min: 42"
Coil OD Max: 74"
Coil ID Min: 24"
Coil OD Max: 24"
Line Speed: 300 Ft/Min
Shape Correction: Straightener
Blank Length Min: 7"
Blank Length Max: 120"
Stack Height w/ Pallet Max: 18"
Stack Weight Max: 20,000 Lbs
