Equipment
Presses
OBI / Gap Frame Press
(1) Used 220 Ton AIDA Single Crank Gap Frame Press w/ Cushion

(1) Used 220 Ton AIDA Single Crank Gap Frame Press w/ Cushion

Have one to sell?
248-268-1603
sales@universalpress.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
AIDA
Model:
NC1-2000(2)
Year:
2015
Stock #:
12462
Status:
For Sale

Description

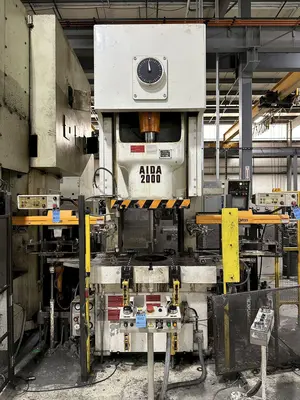

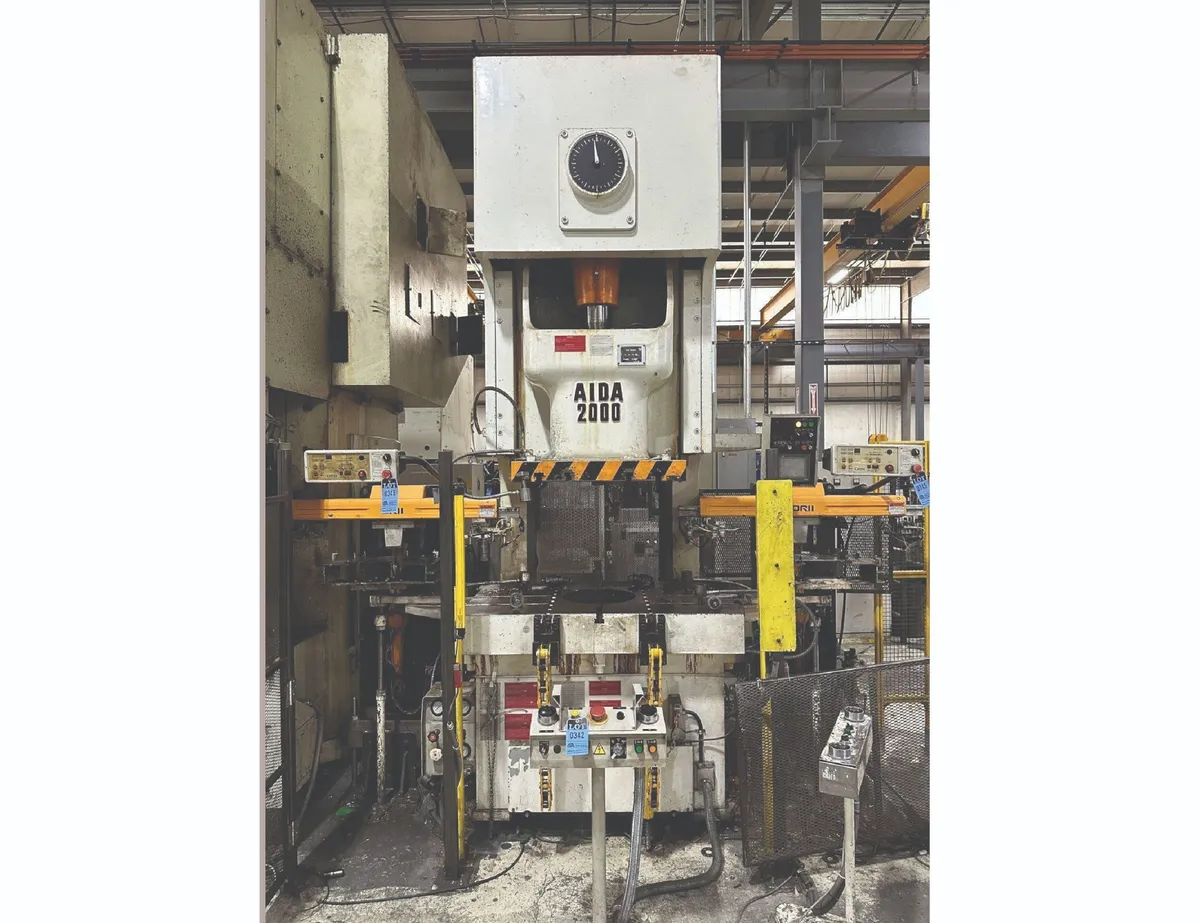

Used 2015 AIDA NC1-2000(2) 220 Ton Single Crank Gap Frame Press with Cushion. Features include 9.84" stroke, 17.72" shut height, air clutch, brake, and counterbalance. Ideal for dynamic operational needs with its robust frame.

Ton220 T
Bed L-R54.7 in
Bed F-B33.1 in
Stroke9.84 in
Adjustment4.33 in
Shut Height17.72 in
Speed (max)50 strokes/min.50 strokes/min.
Speed (min)25 strokes/min.25 strokes/min.
OBI Single DoubleSIngleSIngle
CushionsYesYes
Air Clutch (Yes/No)YesYes
Dimensions72" X 96" X 144" T APROX.72" X 96" X 144" T APROX.
Weight44,100 LBS APROX.44,100 LBS APROX.

9.84" STROKE
4.33" POWER RAM ADJUSTMENT
17.72" SHUT HEIGHT
25-50 SPM
34.6" X 25.6" RAM
54.7" X 33.1" BED
AIR CLUTCH
AIR BRAKE
AIR COUNTERBALANCE
HYDRAULIC OVERLOAD
PALM BUTTONS
CUSHION
HYDRAULIC DIE CLAMPING
20 HP 230/460/60/3
