(1) NEW 400 Ton HEIM 120" x 60" MAXI STAMPER Straight Side Double Crank Press
Have one to sell?
ConditionNew
1 available
New

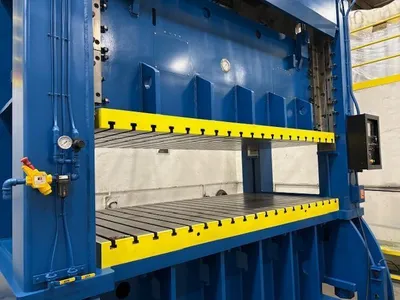

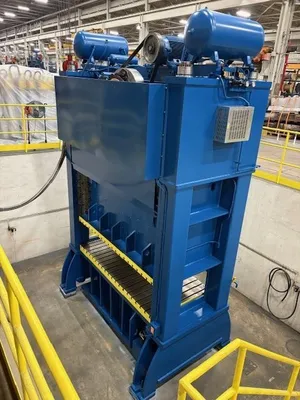

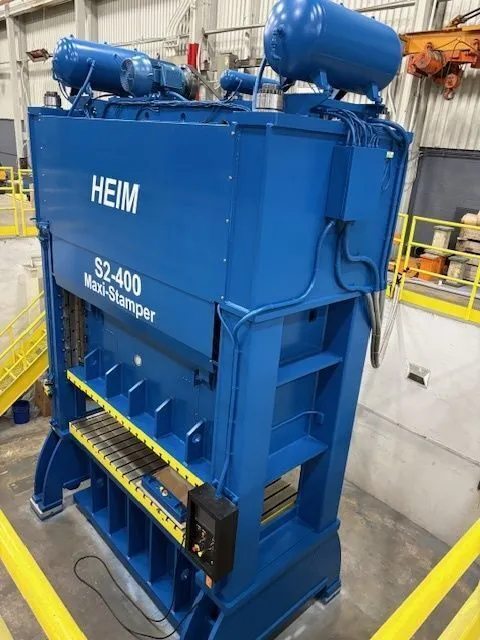

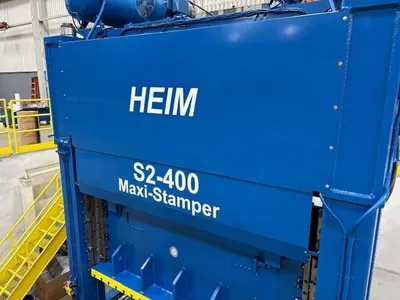

Discover the 2026 HEIM MAXI-S2-400-120-60, a new 400 Ton Double Crank Press designed for precision and power. With a 120"x60" bed, motorized slide adjustment, and a versatile speed range, it's perfect for maximizing performance in your production line.
Capacity: 400 Ton (Full flywheel energy at 37 spm)
Frame Type: Tie Rod Construction
Rated Distance: .500" BDC
Drive Type: Eccentric Geared
Speed: 25 - 50 SPM
Stroke Length: 12"

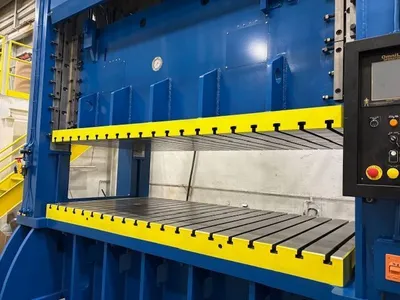

Bed Size: 120" lr x 60" fb
Bolster Area: 120" lr x 60" fb
Bolster Thickness: 6"
Slide Area: 120" lr x 60" fb
Slide Adjustment: 10" (Motorized)
Shut Height: (above bed) 38" SDAU
Shut Height: (above bolster) 32" SDAU
Windows: 38" wide
Floor to top of Bed: 53"
Floor to top of Bolster: 59"
Clutch & Brake Type: Combination/Air

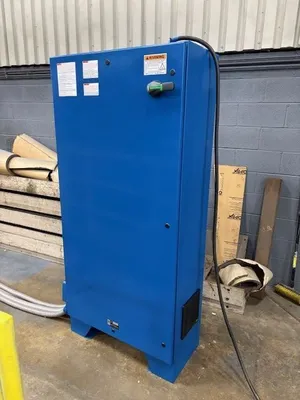

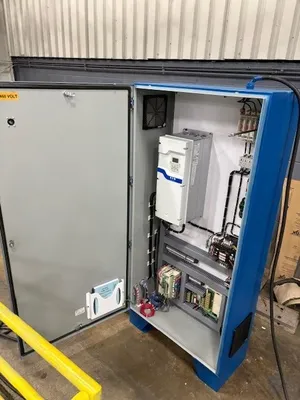

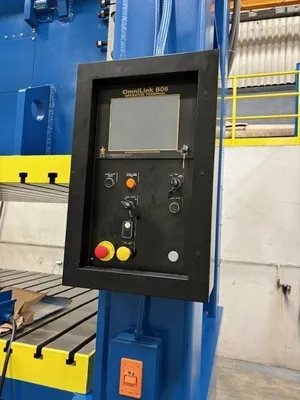

Control Type: Link 5100 APC Cabinet / wall box style
Motor: 60 HP
Recirculating Lube
(4) Air Counterbalance Cylinders
Floor Space: 156" x 98"
Overall Height: 249"
Voltage: 480 V / 3 ph / 60 cy
Color: Heim Blue
Press is currently gong thru production
Approx: 20 weeks remaining for finished press.
Warranty:
Machine for a period of One (1) year - parts and labor (travel and living expenses not included)
