(1) Rebuilt 20 Stand RLM Rollformer

Rebuilt in 2026
NOTE: This is a 20 Stand Machine. We can build a machine with additional stands - P.O.R.

20 Stand - (2)10 Stand Bases
Spindle Diameter: 3"
Roll Space: 20"
Horizontal Centers: 24"
Vertical Adjustment: 6-1/2"-12"

50 HP Motor - 240/480/60/3. If a larger motor is required - P.O.R.
Speed: TBD

Rollformer will be complete including but not limited to the following:
- Standard machine base (two sections).
- Coolant troughs in base - P.O.R.
- All mechanical parts - inboards & outboard stands, shafts, shaft nuts
couplings, pulleys & belts

-Electrical controls include:
Emergency stops on mill to wire to your system, motor, disconnect from motor
If additional controls are required - P.O.R. after reviewing client requirements.

-Adjustable entry guide
-Light Curtains. If additional steel guarding is required - P.O.R
-Painted
-Tested & Cycled

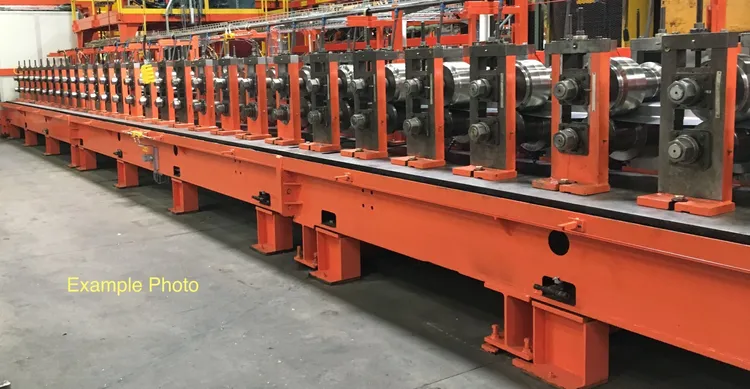

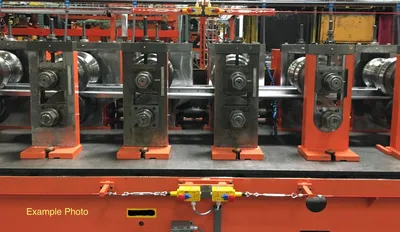

Example photos and an example of a general arrangement schematic attached. Actual photos and drawing will vary.

Delivery estimated at 18-22 weeks upon receipt of P.O. and deposit.
