(1) Used Fadal Model 6030 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

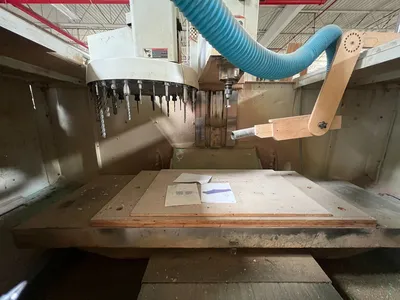

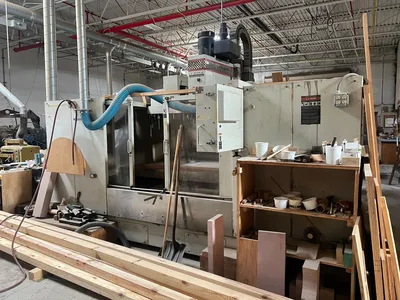

1994 Fadal Model 6030 Vertical Machining Center. Features: 60" X-axis, 30" Y-axis, 30" Z-axis, 15 hp, 21-tool ATC, 40 taper, 62.5" x 30" table. Equipped with Fadal CNC 88HS control. Ideal for precision machining. Condition: used.
Table Size: 62.5" lr x 30" fb
Floor to Table Surface: 36"
Travels:
X Axis: 60"
Y Axis: 30"
Z Axis: 30"
Spindle Nose to Table: 5'5" - 35.5"
Spindle Center to Column Ways: 30"
Spindle Taper: 40
Spindle Motor: 15 hp
Feed Rates: X, Y, Z: 400 IPM
Rapid Rates X, Y, Z: 400 IPM
Max Weight on Table: 4120#

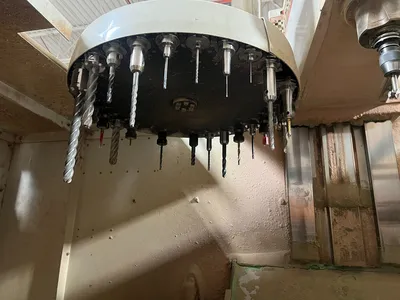

Tool Positions: 21 ATC

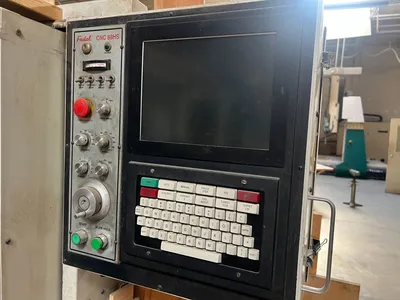

Fadal CNC 88HS Control
**Catalog Specifications Subject to Varification**
