| Swing | 20" | 508 mm |
| Machining Length | 48" | 1,219.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.3" | 58.42 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |

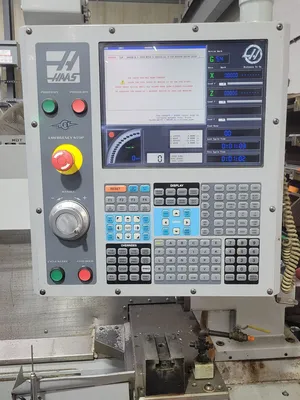

| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 110" x 69" x 83" | 110" x 69" x 83" |
| Weight | 4480# | 4480# |
Swing: (open front apron) 20"
Swing: (over cross slide) 11"
Chuck Size: 8"
Max Cutting Diameter: (w/tool post) 16"
Max Cutting Length: (w/tool post) 48"
Distance Between Centers: 48"
Travels:
X Axis: 8"
Z Axis: 48"
Feed Rates:
Rapid on X Axis: 450 IPM
Rapid on Z Axis: 450 IPM
Spindle Nose: A2-5
Bar Capacity: 2.3"
Spindle Speed: 1800 RPM Max
Motor: 10 HP / 1800 rpm / Direct Speed, Belt Drive
