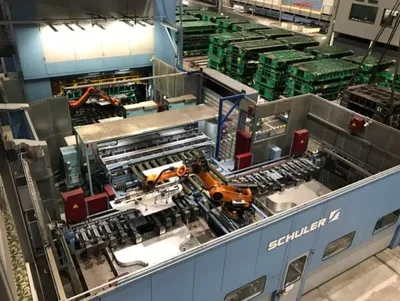

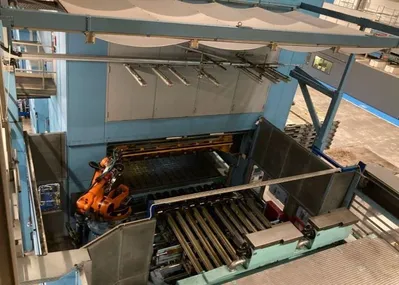

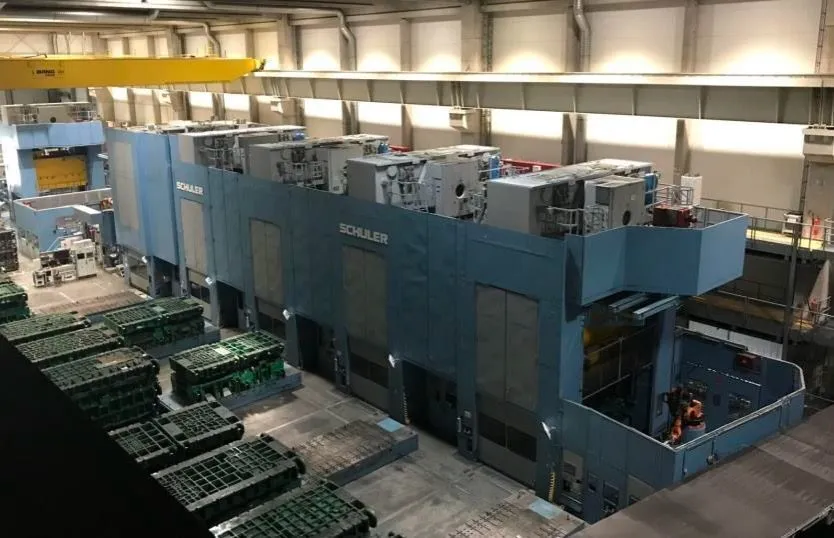

Tandem Line - (1) 2800 Erfurt Ton and (4) 1500 Ton Schuler Presses

Tandem Line - (1) 2800 Ton Erfurt / (4) 1500 Ton Schulers

(1) Erfurt Model EMP 2800 100010 / 10 Press
Tonnage: 2800 Ton (2800kn Ram Force)
Four Point Link Drive
Variable Distance: 25mm
Ram Stroke: 1120mm
Speed: 6-15 SPM
Ram Height (Min/Max.): 1100/1650mm
Ram Adjustment: 550mm
Bed Area: 5000 x 2500mm
Ram Cushion Stroke (Max.): 200mm / Force: 1000kn

Bed Hydraulic Cushion Stroke (max.)- 3: 350mm
Force - Counteracting: 5000 kn
Force - Ejection: 600 kn

(4) Schuler Model EBS 4-1500-4.5-100 Presses
Tonnage: 1500 Ton (15000 kn)
Rated Stroke: 25mm
Capacity Stroke: 6/375 min / kj
Speed: 6-18 SPM
Setting Stroke: 4 SPM
Driver Motor: 600-2000 / 200 min / kw
Frame Distance: 4900mm
Ram Stroke: 1100mm
Adjustment: 500mm
Ram Size: 4500x2500mm
Ejection Stroke: 150mm
Bed Size: 4500x2500mm
Cushion Force: 2500mm
Cushion Stroke: 250mm

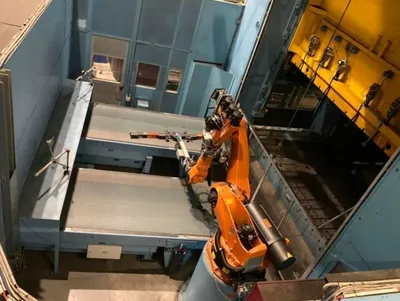

Robots
Kuka Model Dr 120-2 P 2000
Article 10010768
Date: 07/2011
Weight: 1540 kg
Load: 120 kg
Range: 3500mm
