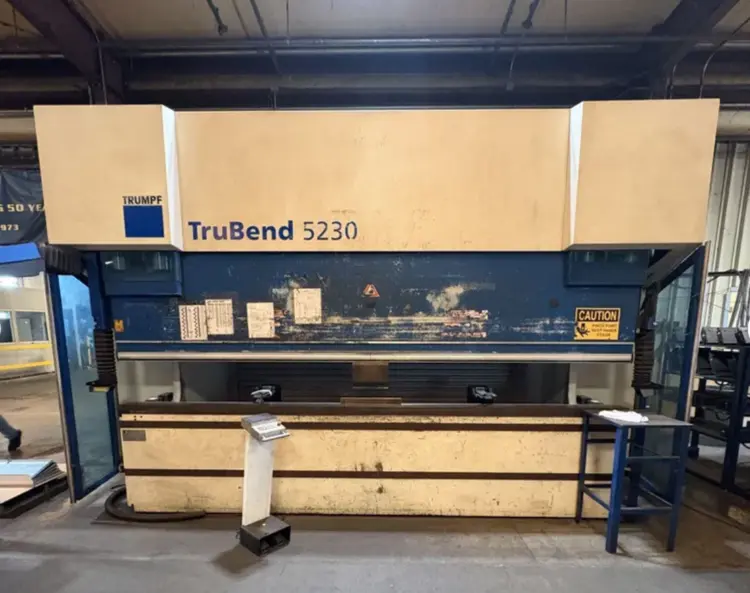

| Ton | 253 T | |
| Bed Length | 167 in | |
| Distance Btwn Housings | 144.88 in | |
| Stroke | 17.52 in | |
| Back Guage | 6 Axis CNC | 6 Axis CNC |
| Throat | 16.5 in | |

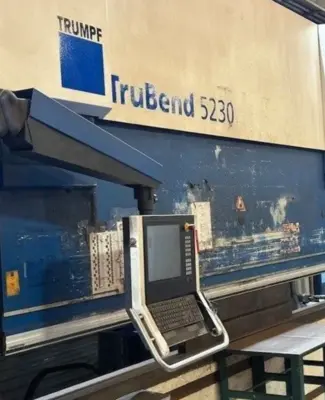

| Control | CNC (Trumpf TASC 6000 CNC Control) | CNC (Trumpf TASC 6000 CNC Control) |
MAX. TONNAGE: 253
BENDING LENGTH: 167”
DISTANCE BETWEEN COLUMNS: 144.88”
STROKE: 17.52”
THROAT:16.5 IN.
EFFECTIVE INSTALLATION HEIGHT: 24”
INCLINATION OF BEAM: (+/-) 0.4”
SPEEDS:
- Y-AXIS:
- - APPROACH: 520 IPM
- - WORKING: 23.5 IPM
- - RETURN :520 IPM
X-AXIS: 2362 IPM
R-AXIS: 780 IPM
Z-AXIS: 2362 IPM

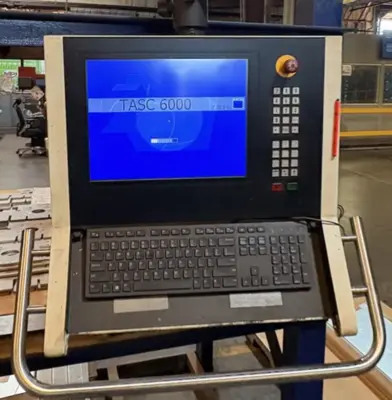

TRUMPF TASC 6000 CNC CONTROL

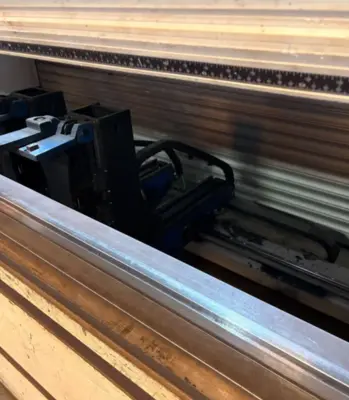

6-AXIS PROGRAMMABLE BACK-GAUGE
CNC CROWNING
PNEUMATIC DIE SHIFT
UPPER AND LOWER HYDRAULIC CLAMPING
3D VISUALIZATION
BEND GUARD SAFETY DEVICE
