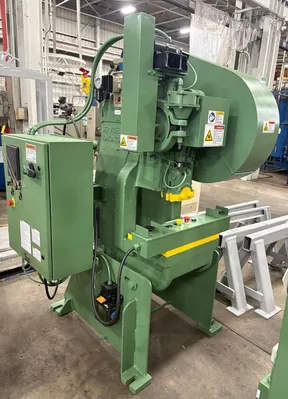

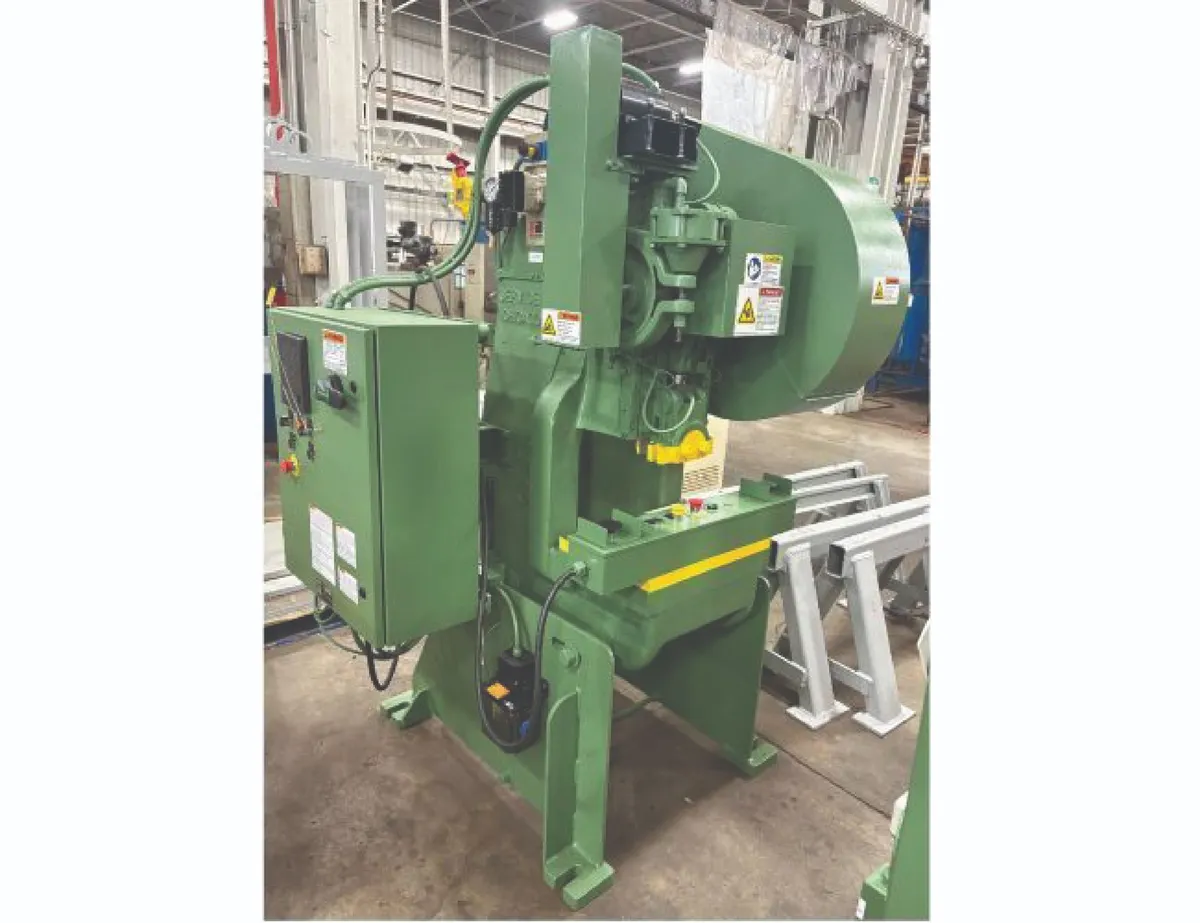

(1) Remanufactured 25 Ton Rousselle Model 3F Flywheel Single Crank OBI Press
Have one to sell?
ConditionUsed
1 available
Remanufactured 25 Ton Rousselle Model 3F OBI Press. Key features: 20"x14" bed, 2" stroke, 10.75" shut height, 135 strokes/min, air clutch, Link 5100 MPC control, automatic oil, dual palm buttons. Options: pedestal stand, isolation mounts available.
Capacity: 25 Ton
Stroke: 2"
Adjustment: 2"
Shut Height: 10.75" over bed
Shut Height: 9.25" over bolster
Bed Area: 20" lr x 14" fb
Bolster Thickness: 1.5"
Hole In Bed: 12" lr x 7" fb
Die Shank Hole: 1.562"
Depth of Throat: 7.5"
Width of opening thru back: 13.5"
Floor to top of Bed: 32.75"
Floor to top of Bolster: 34.25"
Degree of incline: 30ยบ
Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 2HP
Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
