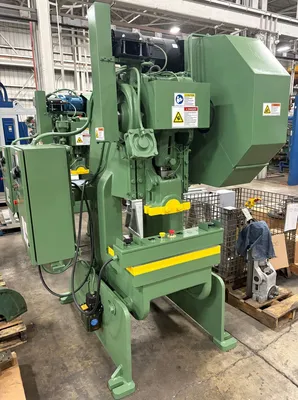

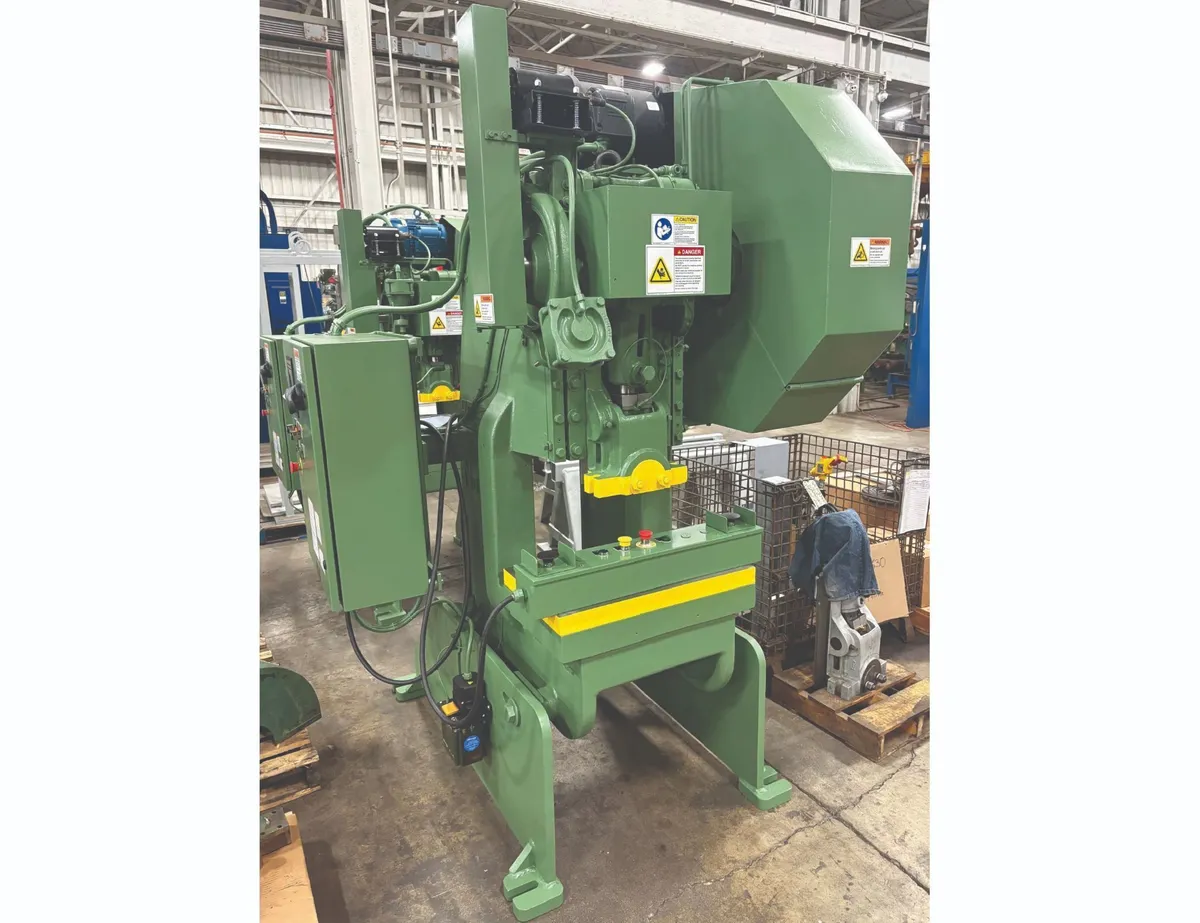

(1) Remanufactured 40 Ton Rousselle Model 4F Flywheel Single Crank OBI Press

(1) Remanufactured 40 Ton Rousselle Model 4F Flywheel Single Crank OBI Press

Have one to sell?
248-268-1603
sales@universalpress.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
OBI / Gap Frame Press
Manufacturer:
ROUSSELLE
Model:
4F
Condition:
New - In-Stock
Year:
2025
Stock #:
12549
Status:
For Sale

Description

Remanufactured 40 Ton Rousselle Model 4F Flywheel Single Crank OBI Press, used condition, offers 105 strokes/min, 40-ton capacity, and advanced press control. Features a 26" x 16" bed, air clutch, and more. Ready to ship, ideal for your pressing needs.

Ton40 T
Bed L-R26 in
Bed F-B16 in
Stroke3 in
Adjustment3.5 in
Shut Height12 in
Speed (max)105 strokes/min.105 strokes/min.
OBI Single DoubleSingleSingle
CushionsNONO
Air Clutch (Yes/No)YesYes
Dimensions39" x 55.5" x 91" tall39" x 55.5" x 91" tall
Weight4,300#4,300#

IN STOCK READY TO SHIP

Capacity: 40 Ton
Stroke: 3"
Adjustment: 3.5"
Shut Height: 12" over bed
Shut Height: 10.25" over bolster
Bed Area: 26" lr x 16" fb
Bolster Thickness: 1.75"
Hole In Bed: 14.5" lr x 10.5" fb
Die Shank Hole: 2"
Depth of Throat: 9.5"
Width of opening thru back: 16"
Floor to top of Bed: 30.75"
Floor to top of Bolster: 32.5"
Degree of incline: 30ยบ

Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 3HP

Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
