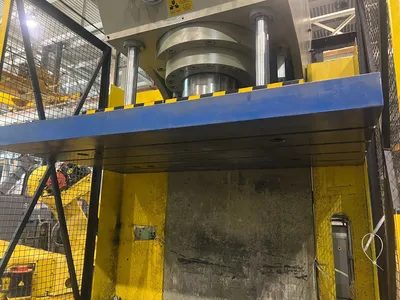

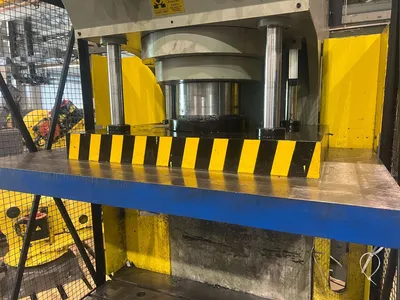

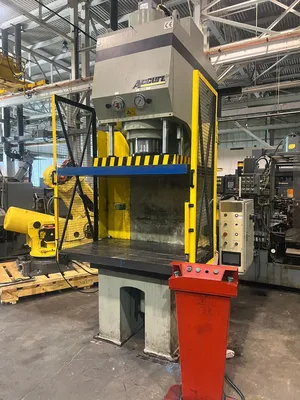

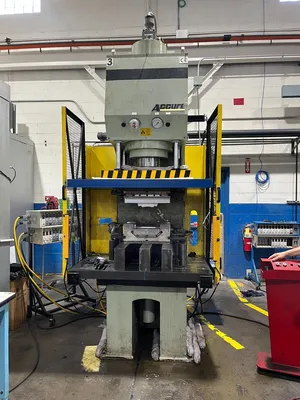

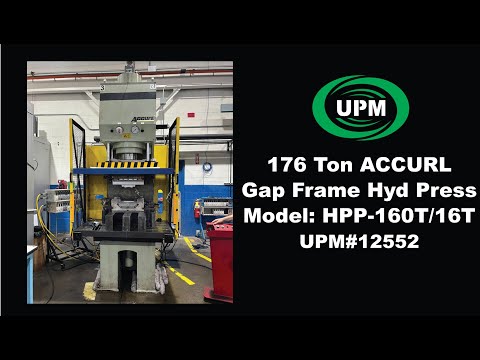

(1) Used 176 Ton ACCURL 4 Post Guided Ram Gap Frame Hydraulic Press
Have one to sell?
$39,500.00 USD
ConditionUsed
1 available

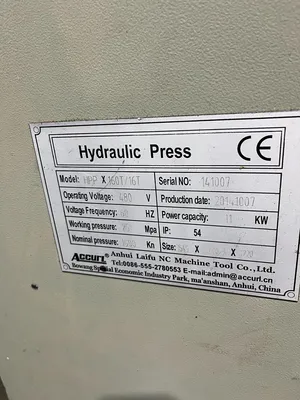

Used 176 Ton ACCURL 4 Post Hydraulic Press, model HPP x 160T / 16T, 2014. Features include 22" stroke, 44" daylight, dual palm buttons, and touch screen. Bed 39"x25.5", robust speed, and T-slotted design. Ideal for dynamic industrial applications.
Capacity: 176 US Tons
Return Force: 23 US Tons
Max Stroke: 22"
Daylight Opening: 44"

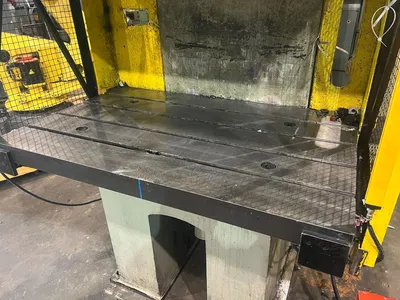

Bed Area: 39" lr x 25.5" fb (T-Slotted LR)
Bolster Plate: 53" lr x 33" fb x 3" thick (T-Slotted LR)
Ram Area: 35" lr x 25" fb (T-Slotted LR)
Ram Plate: 53" lr x 33" fb x 3" thick (T-Slotted LR)
Speeds:
Approach: 75 mm/s
Pressing: 7 - 15 mm/s
Return: 110 mm/s

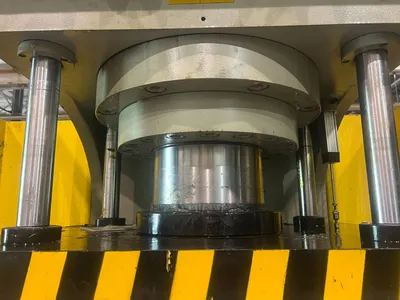

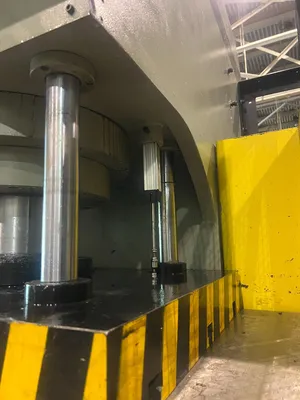

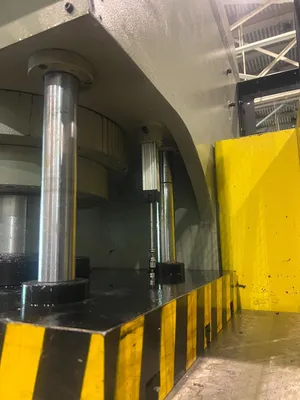

4 Post Guided Ram
Dual Palm Buttons
Bottom Knock Out
Light Curtain (Front)

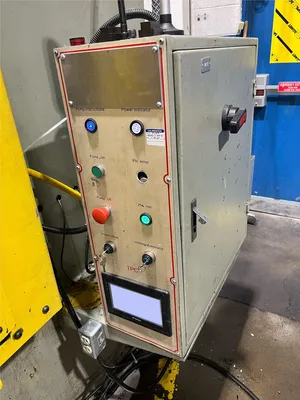

Touch Screen Interface
