(1) NEW 12,000# x 60" Coilquip Model MU 12000V60 Coil Upender
Have one to sell?
ConditionNew
1 available
New
Introducing the NEW Coilquip MU 12000V60 Coil Upender with a 12,000 lb capacity and 60" max coil OD. Featuring a 1hp eurodrive motor, dual #80 roller chain drive, wired diagnostics, and remote controls. Available now, made in the USA.

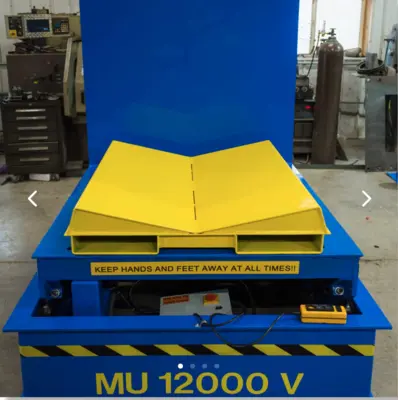

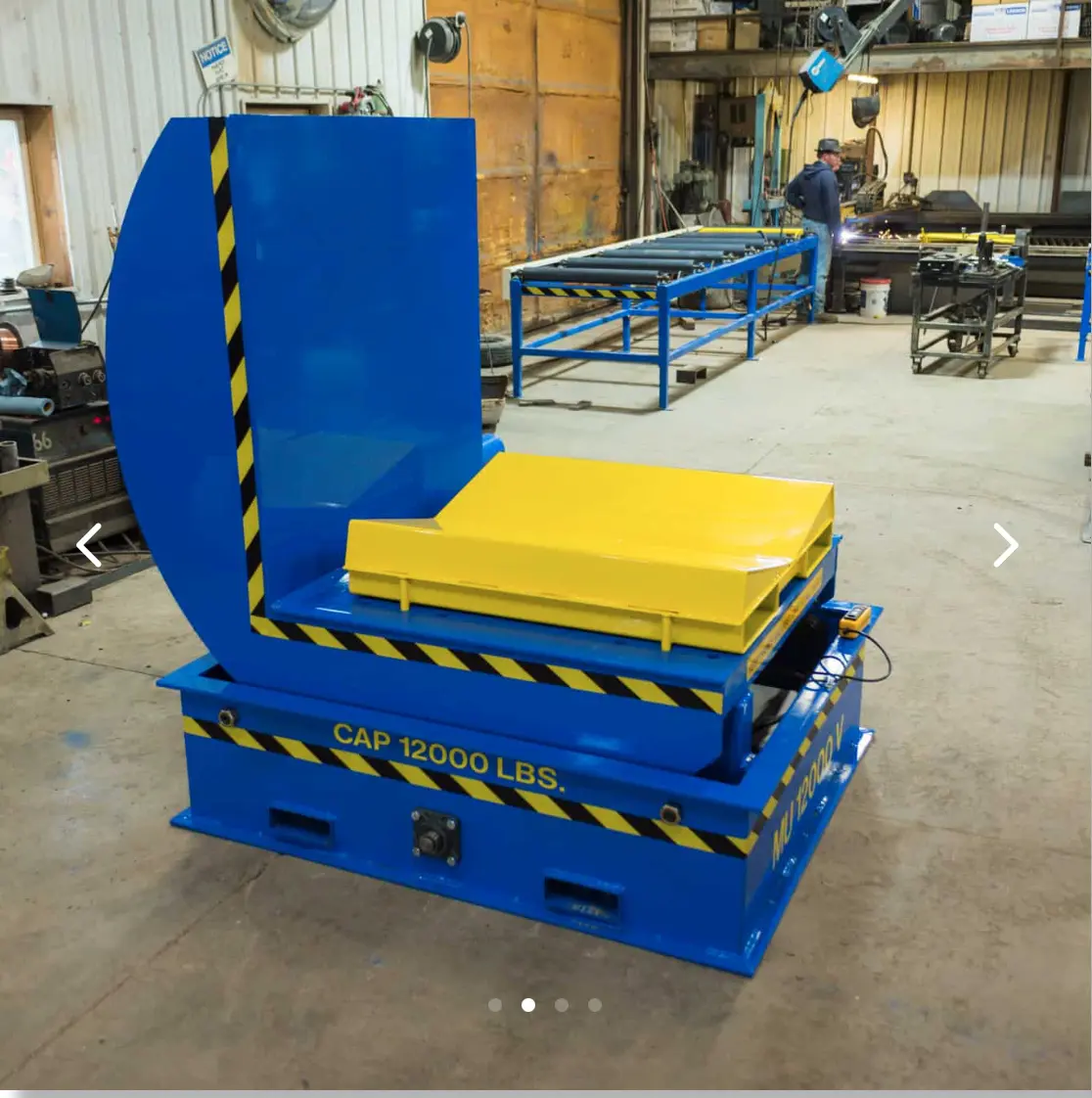

MU 12000 V (PAC-MAN) COIL UPENDER
Brand new, made-to-order in the USA
12,000 pound capacity
60" O.D. coil maximum (also available in 72" O.D.)
Removable, 3-position v-saddle
Deck dimensions 48" x 48"

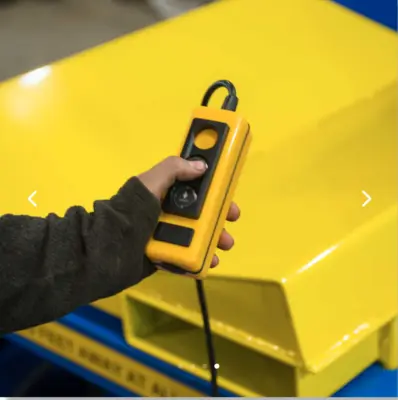

2-Channel Lodar remote controls (two included)
Wired diagnostic pendant included
1hp eurodrive motor and gearbox
Dual #80 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 54" L x 72" W x 75" H
Weight approx. 2,500lb
Fork slots for easy relocation
Deposit of 50% and purchase order must be received before the
requested machine can enter the production queue. Delay in payment
will result in longer lead time.
Payment Terms: 50% w/PO, 50% Prior Shipping
FOB: Rochester, Indiana - MADE IN USA
Deliver: 6 - 8 Weeks from receipt of PO and Deposit
ADDITIONAL OPTIONS:

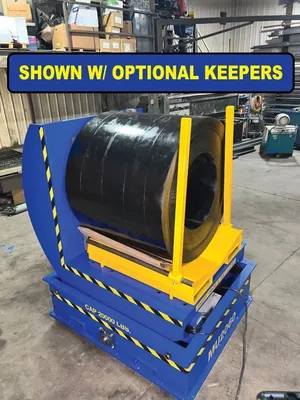

Coilquip Keeper Bar Upgrade for HU12/MU12/MU6
Adjustable keeper bars which extend vertically from saddle
Notched Deck for Overhead Lifting
Motched and reinforced deck for overhead lifting or use with coil ram forklift attachment
