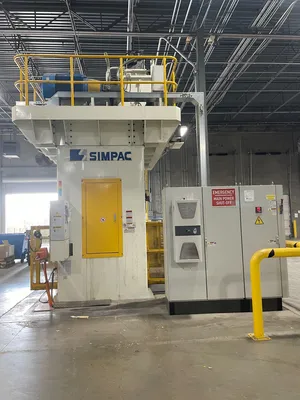

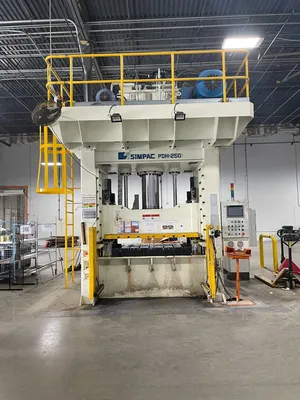

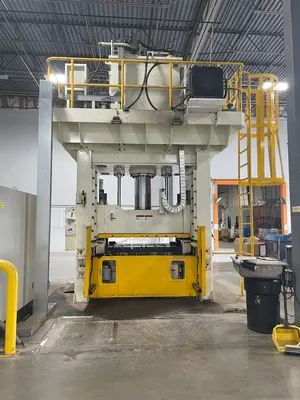

(1) Used 250 Ton SIMPAC Straight Side Downacting Hydraulic Press w/ Cushion
Have one to sell?
ConditionUsed
1 available
Discover the power of the used 2017 SIMPAC PDH-250 Hydraulic Press. This 250-ton marvel, featuring a bed size of 62.9" x 45.2" and a cushion capability, offers performance within a compact, efficient design. Ideal for high-demand applications.
Capacity: 250 TOn
Bed Area: 62.9" lr x 45.2" fb
Slide Area: 66.5" lr x 55.1" fb
Stroke: 27.5"
Daylight: 35.4"
Speeds:
Rapid: 250 mm/sec
Pressing: 8-40 mm/sec
Return: 250 mm/sec
Cushion:
Capacity: 100 ton
Stroke: 11.8"
Pad Area: 47.2" x 27.5"
Oil Reservoir: 264 gallons
Voltage: 480 V / 3 / 60
Approx Weight: 66,500#
