(1) Used 20,000# x 36" wide x .250" thick CHS Automation Coil Reel & Straightener w/ Coil Car (18" Servo Feeder)
Coil weight capacity:: 20000 pounds
Stock Width Capacity: 36 inches
Max Stock Thickness Capacity At Full Width: .250 inches
Minimum expansion range:: 19.5 inches
Maximum expansion range:: 24.5 inches
Coil O.D. capacity:: 72 inches
CHS Line Specifications:
Coil weight capacity: 20,000 Lb
Stock width capacity: 36"
Stock thickness capacity: .250" x 36" Wide
Stock thickness capacity: .375" x 18" Wide
Expansion range: 19.5" - 24.5"
Coil O.D. capacity: 72"
CHS Equipment and Features:
CHS Pull Off Coil Reel and
Traveling Coil Load Car
Model No.: R200-36 / LC-200, Serial No.: 15-6790-91
Three leaf mandrel
Coil width scales recessed into mandrel leafs
Heavy duty hydraulic wedge type expansion
Air drag brakes for adjustable tensioning
Air fail safe brake
Hydraulic threading drive for jog forward and reverse
Hand help pendant for jogging functions
Clock spring safety guard
Traveling coil load car
Powered lift and travel
Hydraulic hold up arm
CHS Powered Straightener Mode No.: PS500-7-36-HD, Serial No.: 156792
Entry and exit pinch rolls x 6.4" diameter
Hydraulic operated entry upper pinch roll adjustment
Air operated exit upper pinch roll adjustment
Seven straightening rolls x 5" diameter
Motorized upper roll adjustments via 15 ton screw jacks
Dual flights of back up rollers on upper and lower straightening rolls
Platen type coil end debender (Hydraulic)
Hold down, peeler threading station (PTH)
Coil hold down arm with motorized end wheel (Hydraulic)
Stock peeler table (Hydraulic)
Peeler blade (Pneumatic)
Assist roll for threading (Hydraulic)
Dual roll stock width edge guides
Individual or simultaneous stock guide adjustments
Scales for edge guide positioning
Automatic lubrication system
Operator's control station
Hand held pendant for jog forward and reverse
Auto / Run cycle
Laser loop control with remote stand
Exit thread table Model No. ETT-36
Bomb bay door design

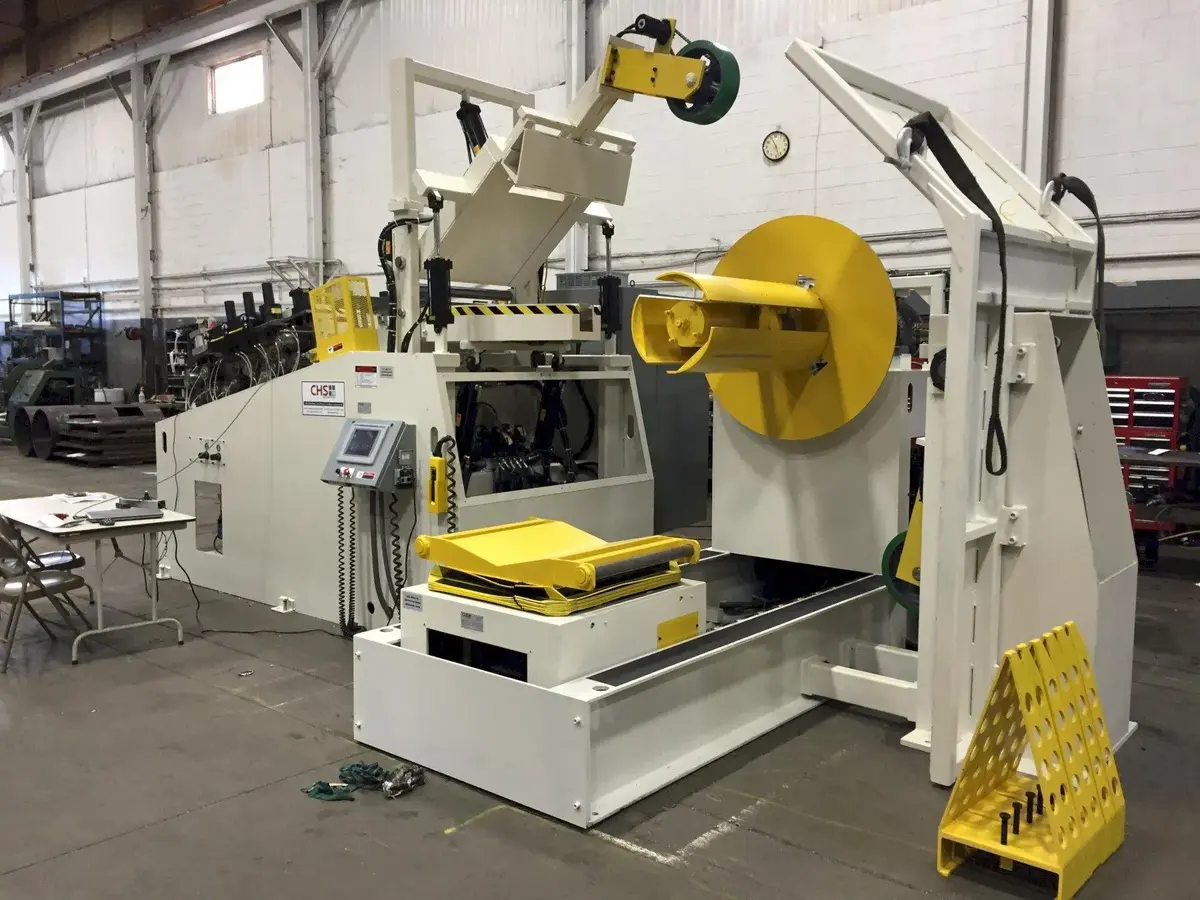

NOTE: Lead photo number 1 is from when the machine was built new
