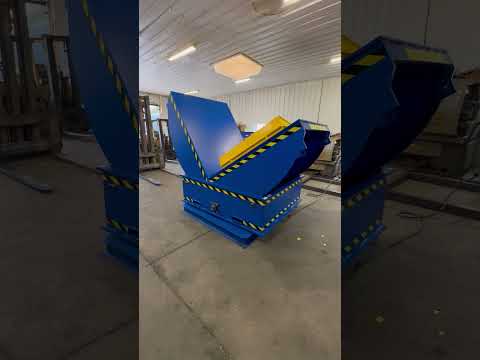

(1) NEW 20,000# x 60" OD Coilquip Mechanical Upender with Rotation

Brand new, made-to-order MADE in the USA
20,000 pound capacity
60" O.D. coil maximum (also available in 80" O.D.)

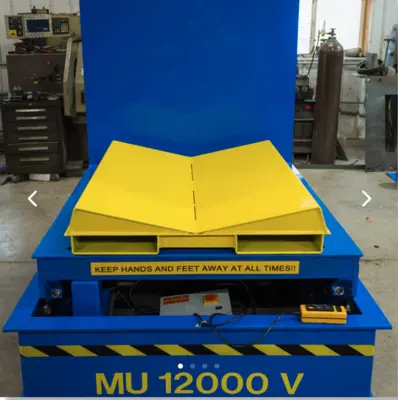

Removable, 3-position v-saddle
Deck dimensions 48" x 48"
2-Channel Lodar remote controls (two included)
Wired diagnostic pendant included
2hp eurodrive motor and gearbox
Dual #100 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 54" L x 72" W x 75" H
Weight approx. 3,500lb
Fork slots for easy relocation
Rotating 20,000lb 60" Max O.D. Slew Ring
Coilquip 180-degree rotational base upgrade for 20,000lb 60" max O.D.
mechanical upender.
Mechanically-driven (worm gear) slew ring
Separate control functions: control switch inside machine selects upend-only,
rotate-only, or simultaneous operation.
No hydraulics
Note: This rotational upgrade does not utilize a chain, sprocket, and castors, as
does most of the industry. It is a mechanically-driven slew ring, which requires
far less maintenance and downtime.

Delivery: 8 - 10 Weeks - upon receipt of purchase order and deposit
Terms: 50% Down with order / 50% Balance prior loading.
