(1) NEW 20,000# x 80" OD Coilquip Mechanical Upender with Rotation

Brand new, made-to-order MADE in the USA
20,000 pound capacity
80" O.D. coil maximum (also available in 60" O.D.)

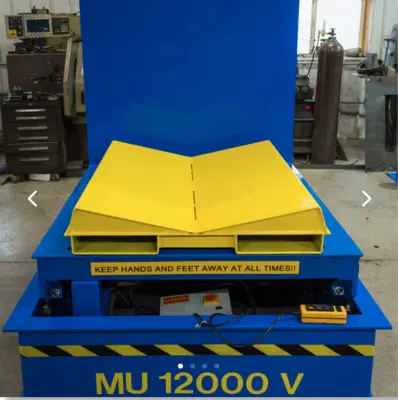

Removable, 3-position v-saddle
Deck dimensions 60" x 68"
2-Channel Lodar remote controls (two included)

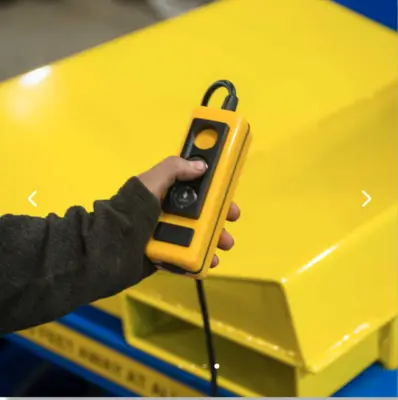

Wired diagnostic pendant included
2hp eurodrive motor and gearbox
Dual #100 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 66" L x 80" W x 96" H
Weight approx. 7,000lb
Fork slots for easy relocation

Rotating 20,000lb 80" Max O.D. Slew Ring Upgrade
Coilquip 180-degree rotational base upgrade for 20,000lb
80" max O.D. mechanical upender.
Mechanically-driven (worm gear) slew ring
Separate control functions:
control switch inside machine selects upend-only, rotate-only,
or simultaneous operation.
No hydraulics

Note: This rotational upgrade does not utilize a chain, sprocket, and castors,
as does most of the industry. It is a mechanically-driven slew ring,
which requires far less maintenance and downtime.

Delivery: 6 - 8 Weeks - upon receipt of purchase order and deposit
Terms: 50% Down with order / 50% Balance prior loading.
