(1) Used Hansford Powered Walk Behind Die Cart
Have one to sell?
ConditionUsed
1 available

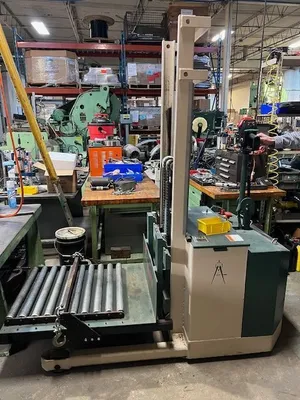

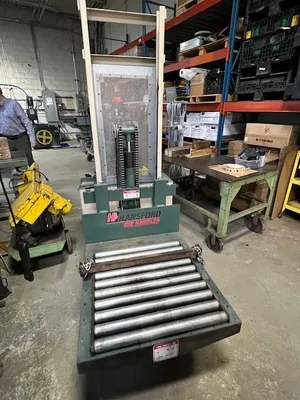

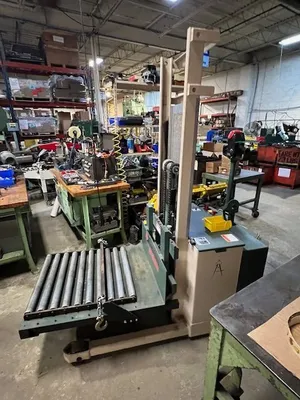

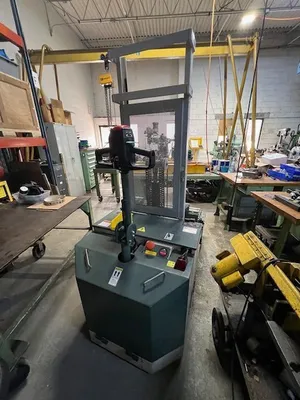

Used Hansford PWB 3063 Walk Behind Die Cart, 2011. Max 2,500 lb capacity, features include full tiller handle, 24V operation, push/pull mechanism, 225 AH batteries, lift chains, safety features, and hydraulic check valve. Ideal for handling tasks.
Model: PWB 3063
Wheel Size: Front: 5" x 3" Drive: 10" x 3"

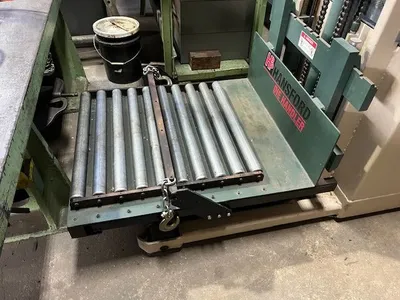

Platform Size: 30" L x 32" W
Legs ID: 24 5/8"
Legs OD: 32 1/2"
Overall Length: 63"
Overall Height: 81"
Load Center: 18"
Platform Lowered Height: 11"
Platform Raised Height: 63"
Maximum Die Weight: 2,500"
2 Roller Lift Chains - 9,000 Lbs. yield each

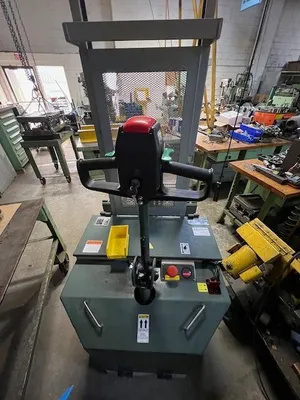

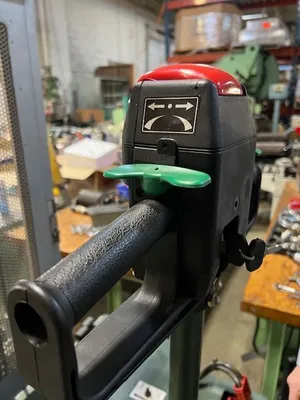

Full feature tiller handle with key lock switch, step less forward/reverse control, lift and lower control, horn button, safety belly button switch.

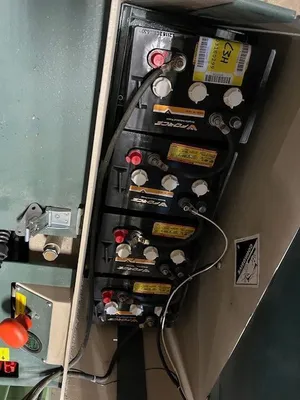

225 AH batteries with 25 amp on-board charger with powered vent, battery indicator, hour meter, low charge lift limit.
24v operation, emergency disconnect button.
Powered push/pull mechanism for die load/unload
Hydraulic check valve on lift cylinder
Used Hansford PWB 3063 Walk Behind Die Cart, 2011. Max 2,500 lb capacity, features include full tiller handle, 24V operation, push/pull mechanism, 225 AH batteries, lift chains, safety features, and hydraulic check valve. Ideal for handling tasks.
Imperial
| Max Weight Capacity | 2,500 lb |
| Weight | 1850 |
Model: PWB 3063
Wheel Size: Front: 5" x 3" Drive: 10" x 3"
Platform Size: 30" L x 32" W
Legs ID: 24 5/8"
Legs OD: 32 1/2"
Overall Length: 63"
Overall Height: 81"
Load Center: 18"
Platform Lowered Height: 11"
Platform Raised Height: 63"
Maximum Die Weight: 2,500"
2 Roller Lift Chains - 9,000 Lbs. yield each
Full feature tiller handle with key lock switch, step less forward/reverse control, lift and lower control, horn button, safety belly button switch.
225 AH batteries with 25 amp on-board charger with powered vent, battery indicator, hour meter, low charge lift limit.
24v operation, emergency disconnect button.
Powered push/pull mechanism for die load/unload
Hydraulic check valve on lift cylinder
