(2) 300 Ton PH Hydraulics 4-Post Downacting Hydraulic Presses
Sold

(2) 300 Ton PH Hydraulics 4-Post Downacting Hydraulic Presses

Hydraulic Press
Manufacturer:
PH HYDRAULICS
Model:
4C 300-P
Year:
1994
Stock #:
12726

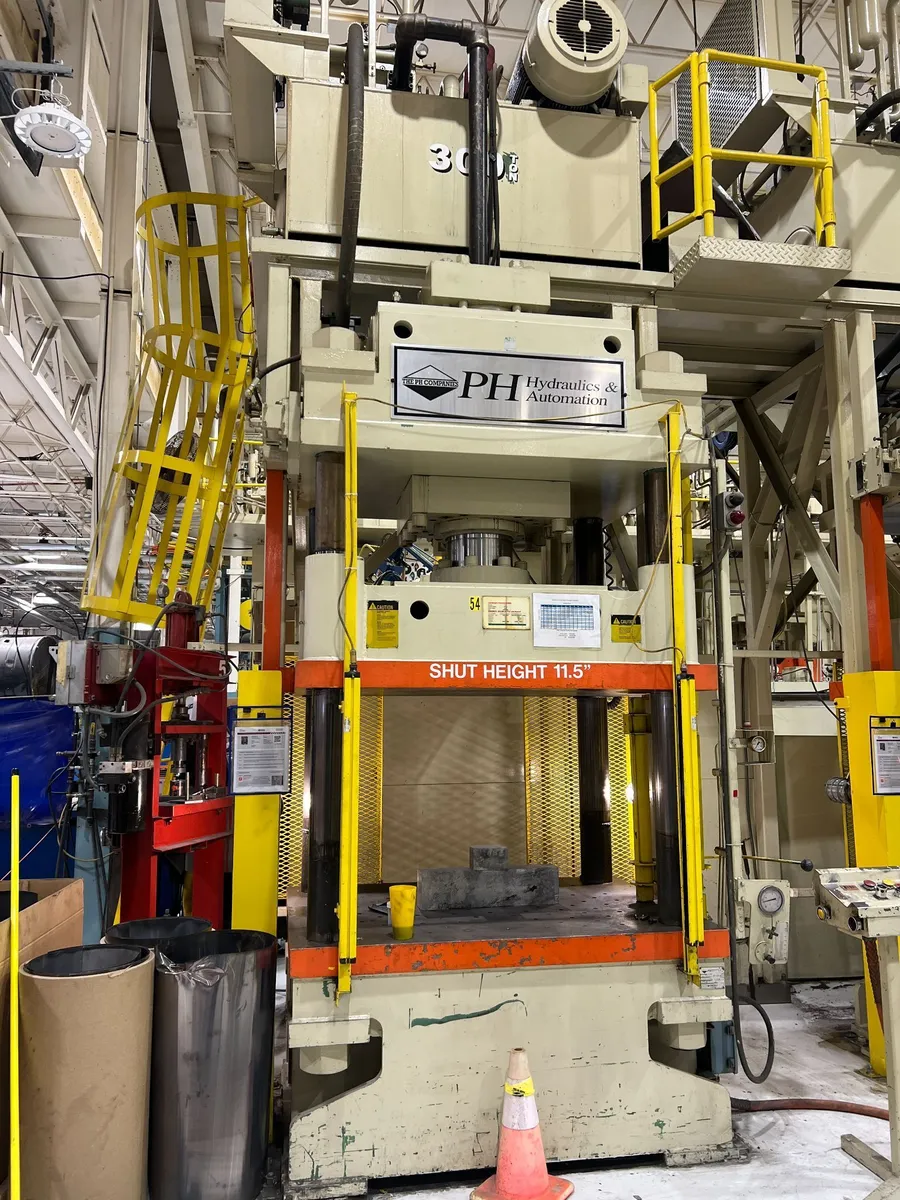

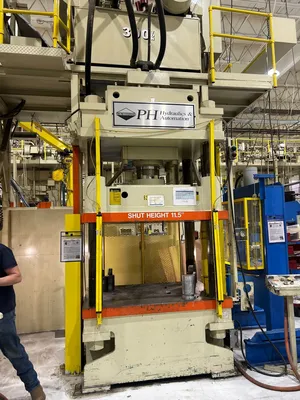

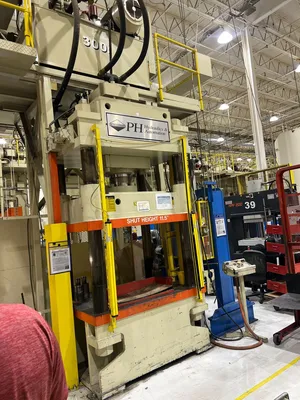

PH Hydraulics 4C 300-P 300 Ton 4-Post Downacting Hydraulic Presses, used, from 1994. Specifications include a 65" x 48" bed, 24" stroke, 36" daylight opening, 100 HP motor, and 400-gallon reservoir. Floor standing with dual palm button stand for safety.
Ton300 T
Bed L-R65 in
Bed F-B48 in
Stroke26 in
Daylight Opening36 in
Speed280 ipm
Dimensions72" lr x 48" fb x 146" plus approx 48" for hyd unit - tall72" lr x 48" fb x 146" plus approx 48" for hyd unit - tall

Capacity: 300 Ton
Stroke Length: 24"
Daylight Opening: 36"

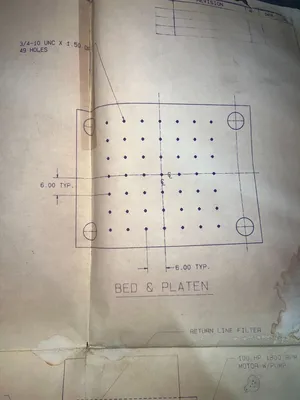

Bed Area: 65" lr x 48" fb

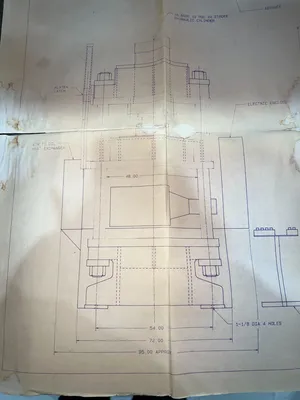

Distance Between Posts: 48" lr x 31" fb

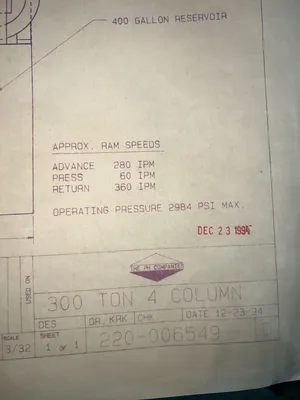

Speeds:
Advance: 280 IPM
Press: 60 IPM
Return: 360 IPM

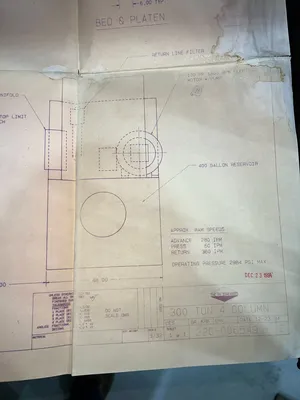

400 Gallon Reservoir

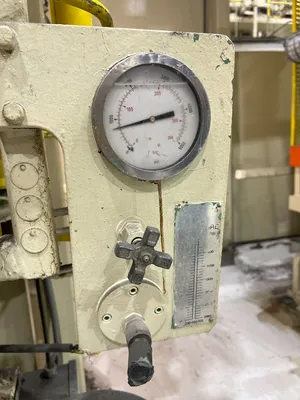

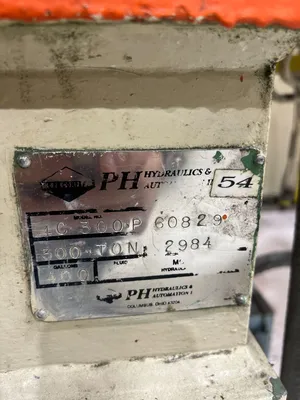

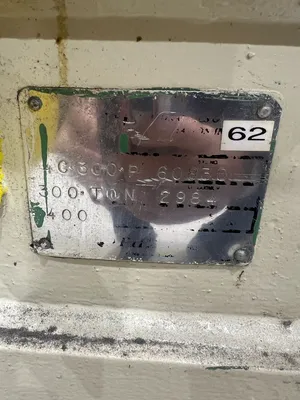

Max Pressure Rating: 2984 PSI
Motor: 100 HP
Main Cylinder: 16" bore / 12" rod / 24" stroke

Floor Standing

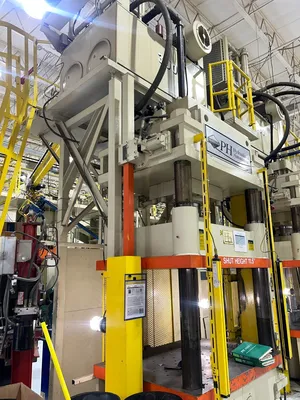

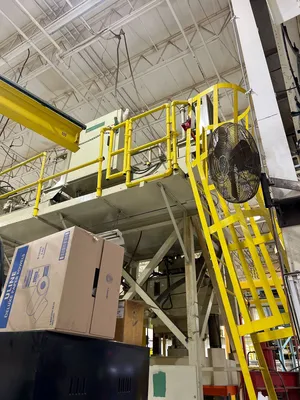

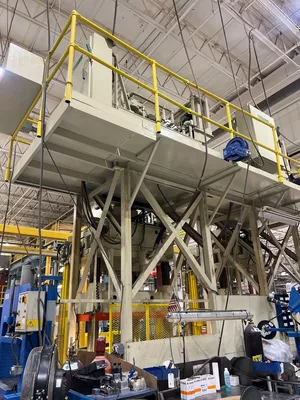

Top Mounted Hydraulics - Could be moved to floor for lower press height.

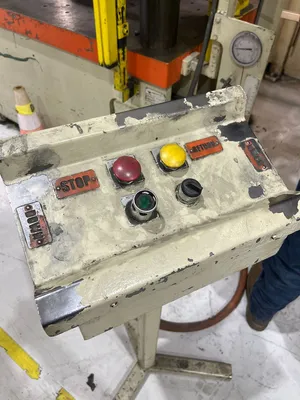

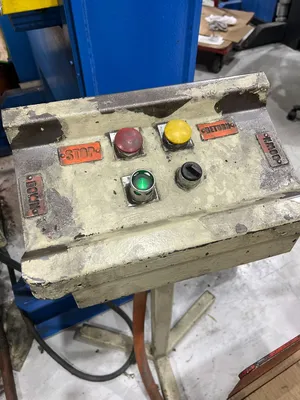

Dual Palm Button Stand
Light Curtains Front

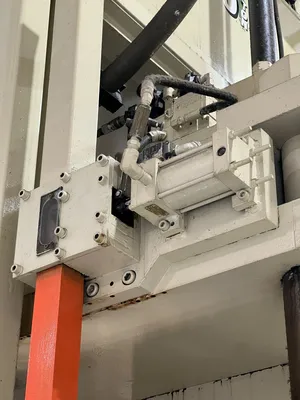

Platen Safety Latch
Swing In Die Block

This equipment has been sold. Similar equipment available now is shown below.
