(1) NEW 12,000# x 60" Coilquip Hydraulic Coil Upender
Have one to sell?
ConditionNew
1 available
$21,500.00 USD
New

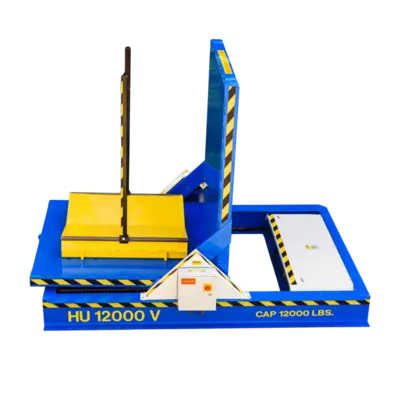

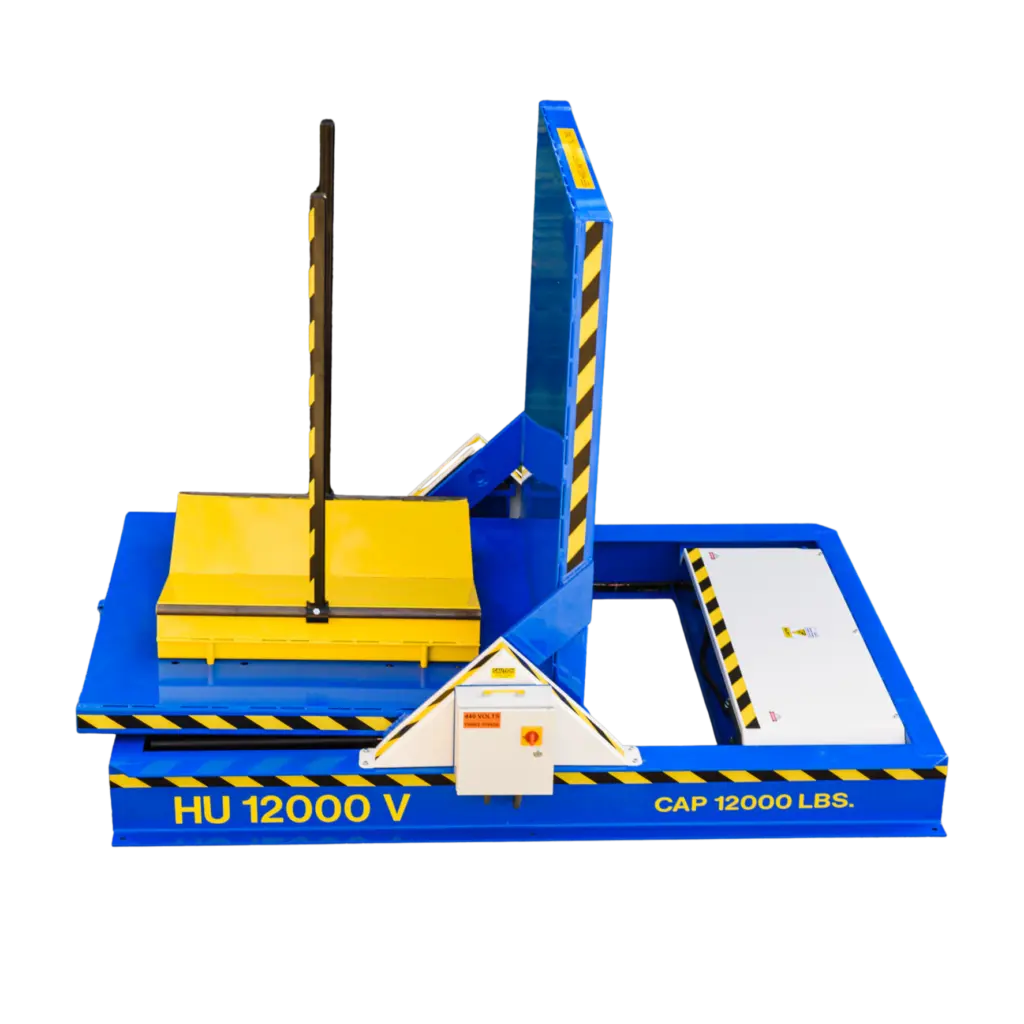

Introducing the NEW 2026 COILQUIP HU12000V Hydraulic Coil Upender. With 12,000 lb capacity, 60" coil OD, and advanced features like a removable V-saddle and dual hydraulic cylinders, it's a top choice for efficient coil handling. Made in the USA.
12000lbs. Capacity
Removable V-Saddle
Saddle has hardened pins with 3 positions for varying pallet thickness
60″ O.D. Capacity
52″ Wide x 54″ F-B flat surface dimension
Dual 4″ Hydraulic cylinders
5 HP Self Contained Hydraulic Unit
208-230/460/3/60 or 230/1/60
Radio control standard
Dimensions approx. 96″ L x 65″ W x 65″ H
Weight approx. 4,000lbs.
MADE IN THE USA
6 - 8 Week Delivery (may vary)
NOTE: options shown will add to cost.
