(1) NEW 12,000# x 72" Coilquip Hydraulic Coil Upender
Have one to sell?
ConditionNew
1 available
$23,500.00 USD
New

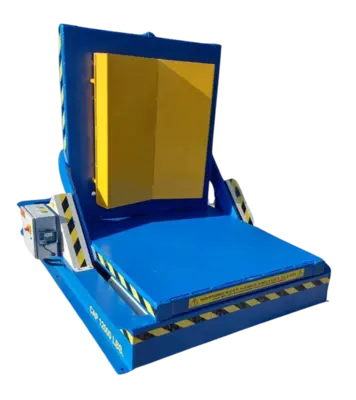

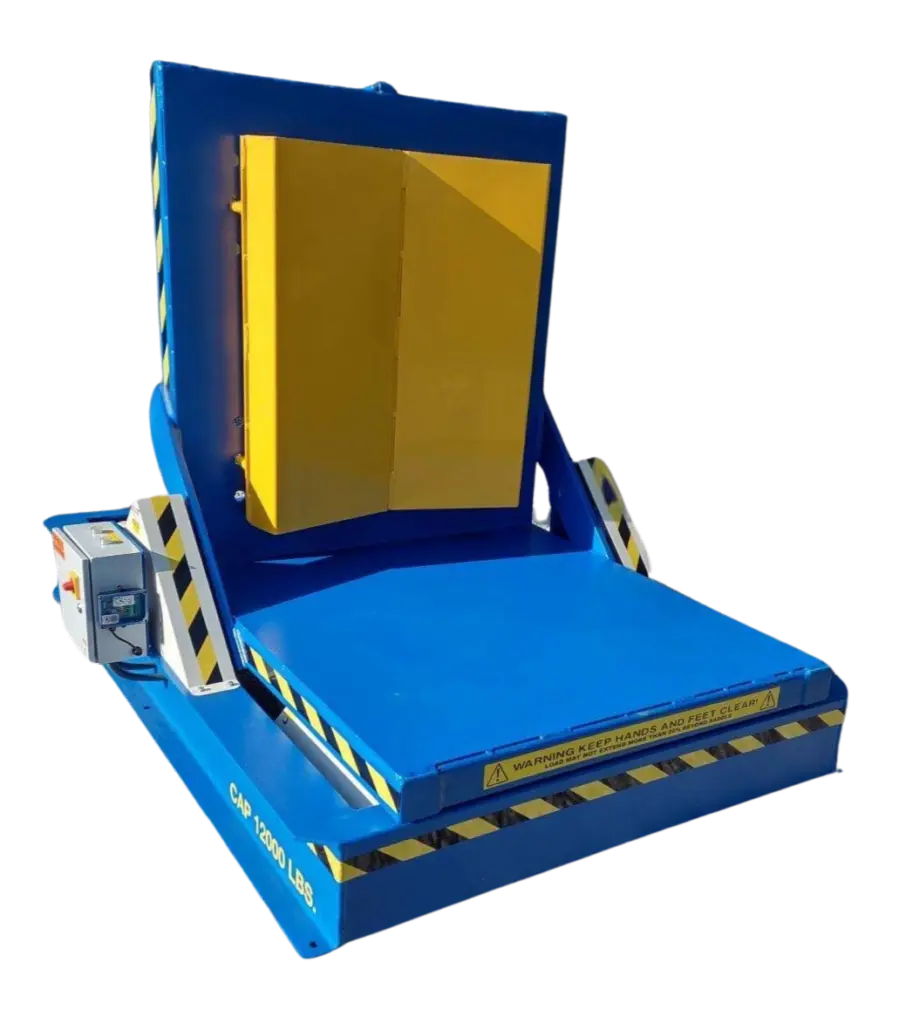

Introducing the 2026 COILQUIP HU12000V72, a top-tier new hydraulic coil upender. Max coil weight: 12,000 lbs, 72" O.D. capacity. Featuring a removable V-saddle with hardened pins, dual hydraulic cylinders, and standard radio control. Made in the USA.
12000lbs. Capacity
Removable V-Saddle
Saddle has hardened pins with 3 positions for varying pallet thickness
72″ O.D. Capacity
60″ Wide x 64″ F-B flat surface dimension
Dual 4″ Hydraulic cylinders
5 HP Self Contained Hydraulic Unit
208-230/460/3/60 or 230/1/60
Radio control standard
Dimensions approx. 108″ L x 77″ W x 71″ H
Weight approx. 4,500lbs.
MADE IN THE USA
6 - 8 Week Delivery (may vary)
NOTE: options shown will add to cost.
