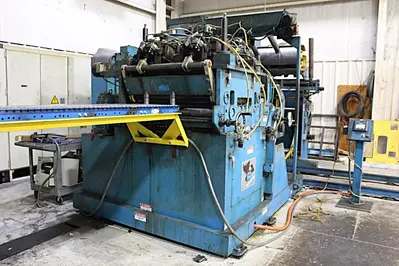

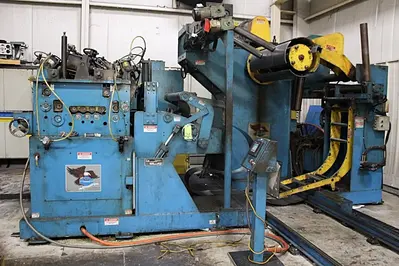

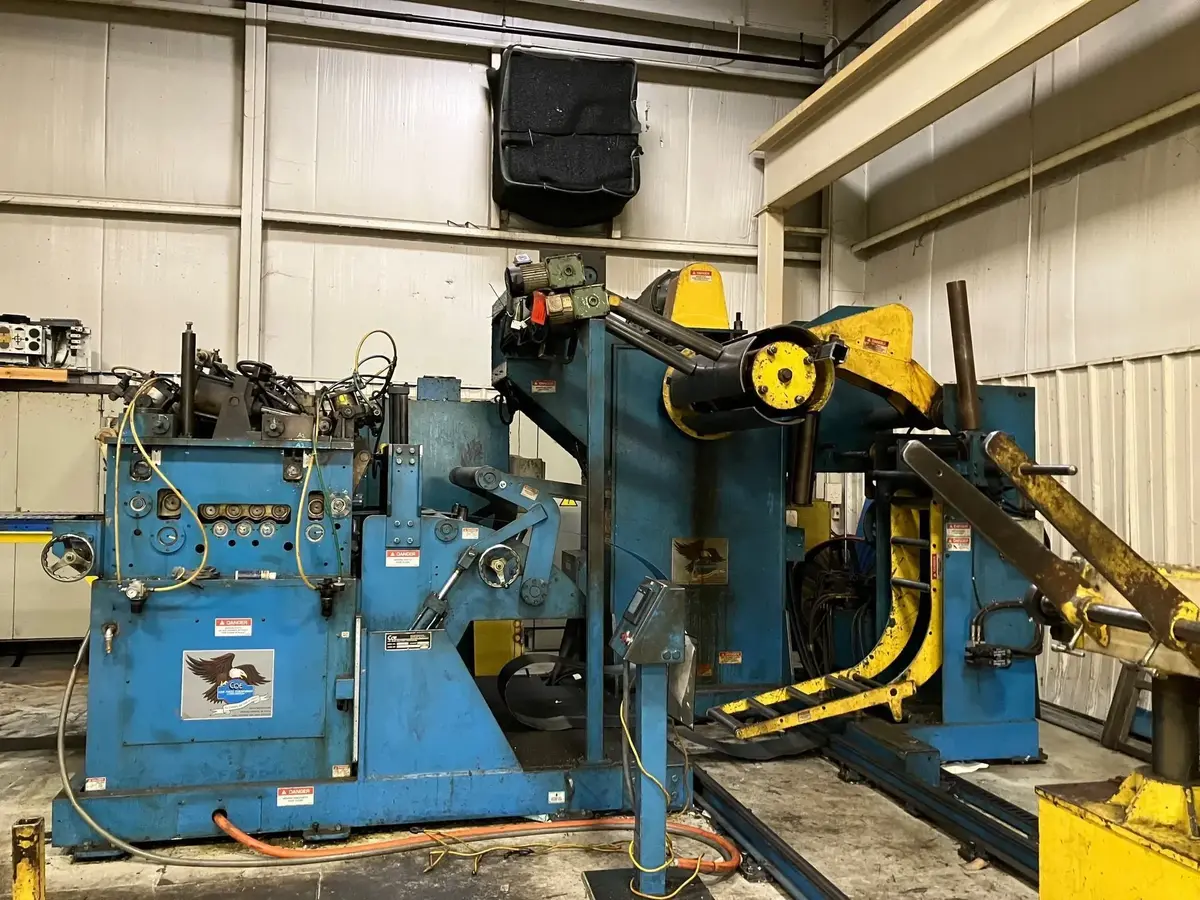

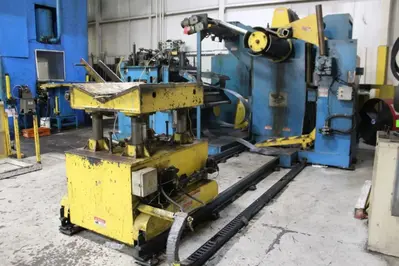

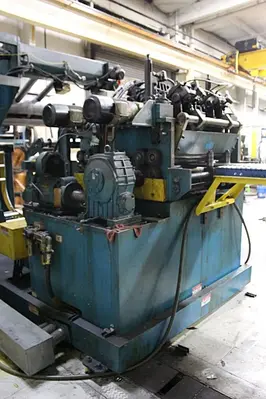

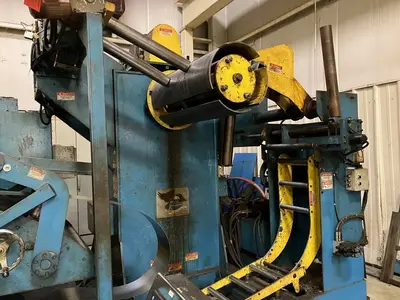

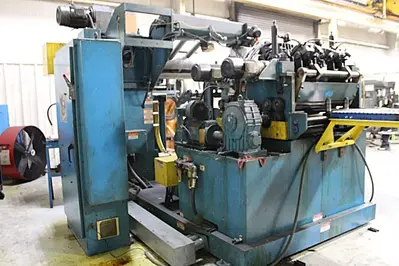

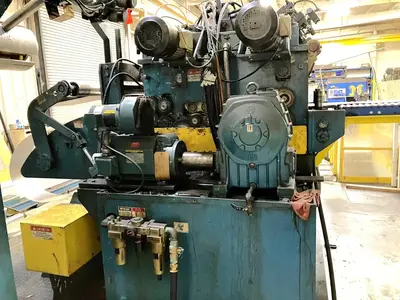

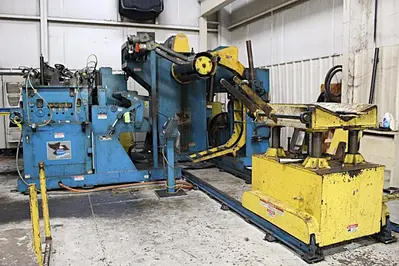

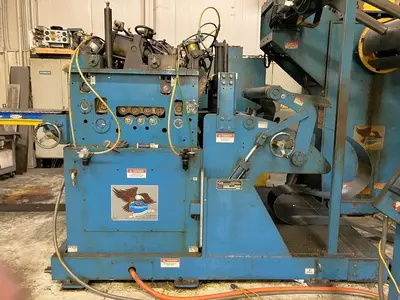

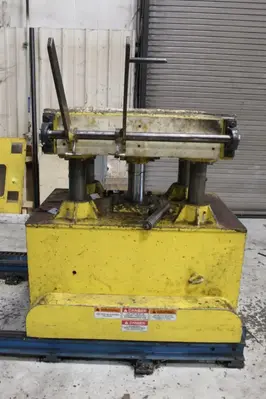

(1) Used 20,000# x 40" wide x .250" thick COE Space Saver Coil Feed Line

Coil Weight Capacity: 20,000#
Coil I.D.: 20" - 24"
Coil O.D.: 72" Max
Expansion Type: Wedge Type Hydraulic Cylinder

Straightening Capacity
Pinch Rollers: 2 rolls — 4.42" Dia.
Feeder Rollers: 2 rolls — 5.66" Dia.
Straightener Rollers: 7 rolls — 3.36" Dia. — 4 over 3

Material Specifications — High-Strength Low-Alloy Steel (HSLA)
HSLA 50k Yield (Max): .250" thick @ 18" wide
HSLA 50k Yield (Min): .020" thick @ 36" wide
HSLA 50k Yield (Min): .187" thick @ 36" wide

Performance Specifications
Feed Velocity: 200 FPM
Feed Acceleration: 20 feet / second / second
Feed Accuracy: +/- .005"

EQUIPPED WITH:
Lewco Conveyor
