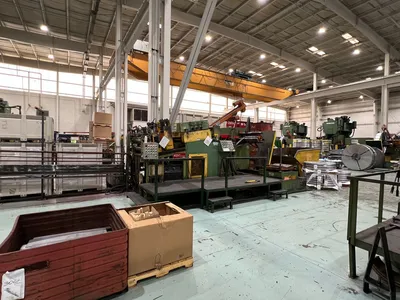

(1) Used 20,000# x 24"Wide x .165" Dallas Servo Feed Line
Have one to sell?
ConditionUsed
1 available
Used Dallas Servo Feed Line DRFE-424 for sale, ideal for heavy-duty applications. Handles max coil weight of 20,000 lb and width of 24 in. Features powered straightener, coil car, and uncoiler with 72" OD capability. Suitable for precision operations.

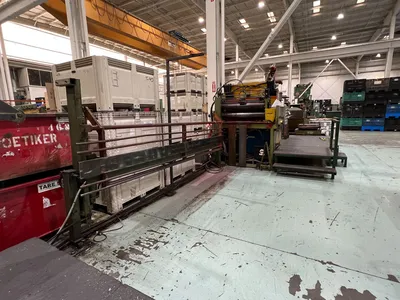

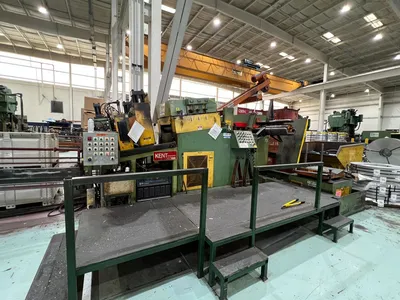

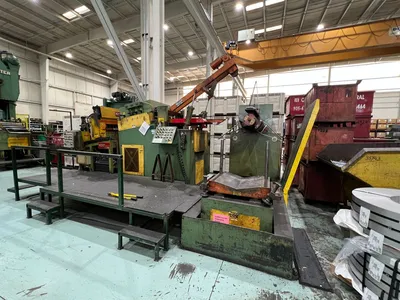

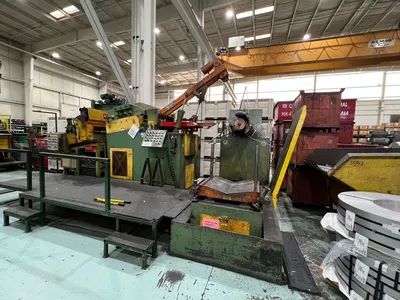

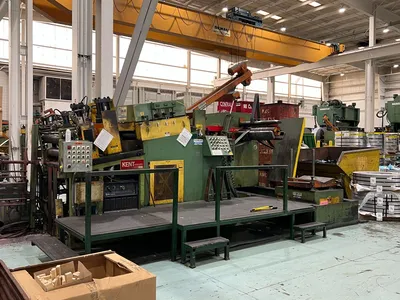

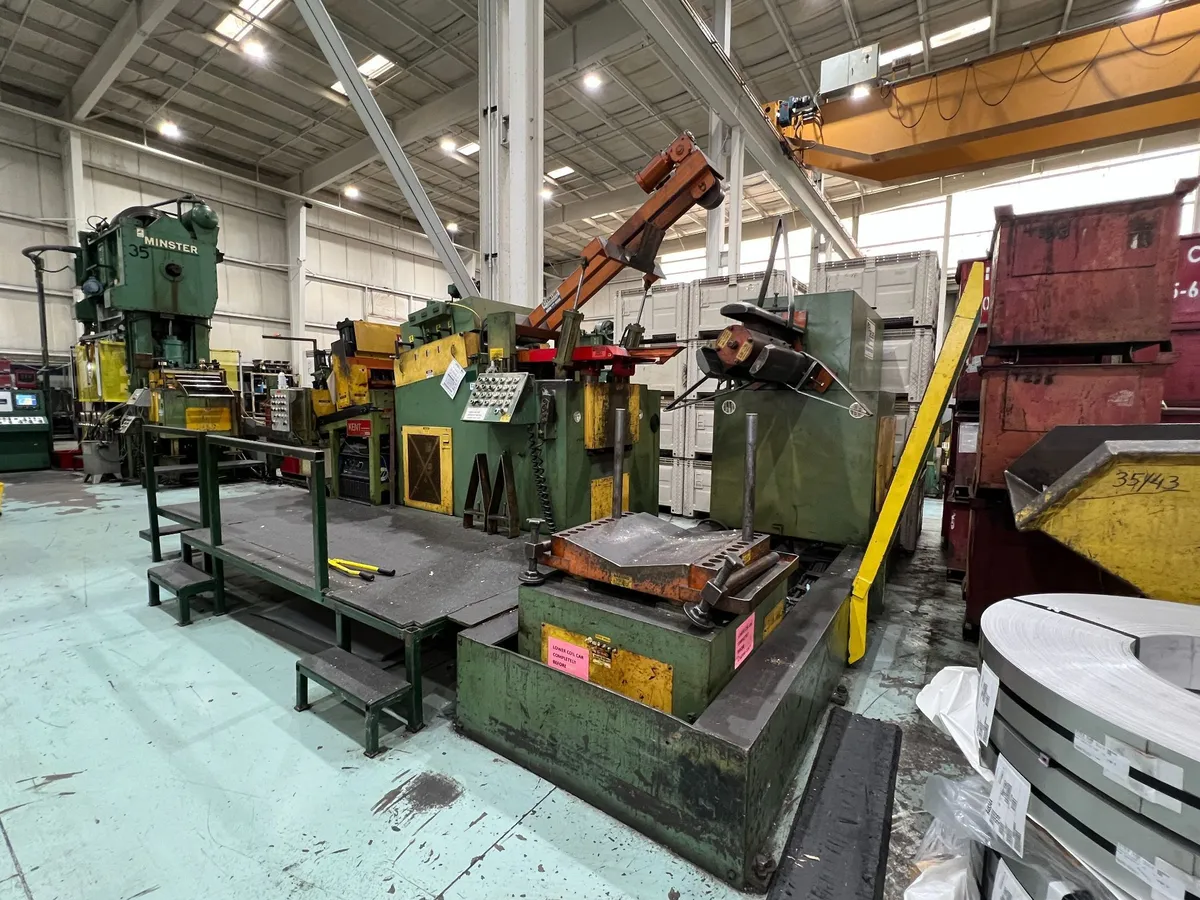

Complete Dallas Servo Feed Line Including
Right to Left Direction

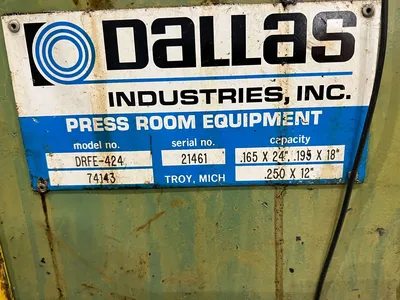

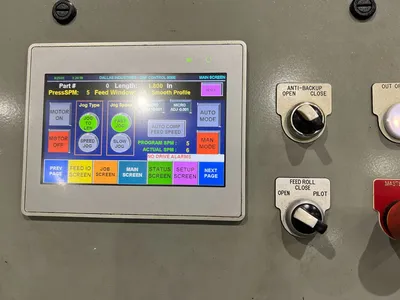

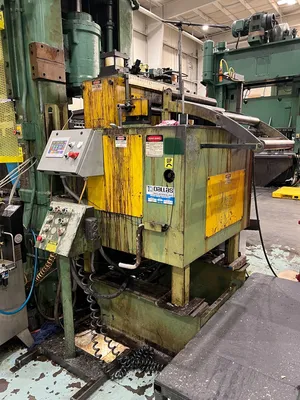

Feeder:
Model: DRFE-424 / 74143
s/n: 21461
Cabinet Style
Capacity: .165"x24" / .195"x18" / .250"x12"
Thread Table

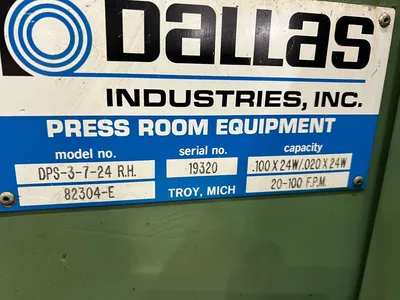

Straightener:
Model: DPS-3-7-24RH / 82304-E
s/n: 19320
Powered
Capacity: .020"-.100"x24"
Speed: 200-100 FPM
(7) Straightening Rolls

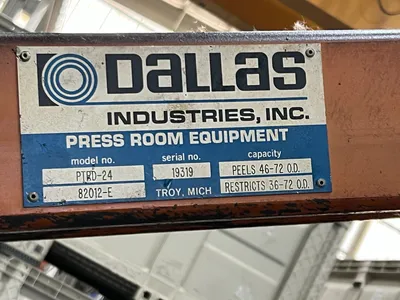

Holddown Arm Model PTRD-24/82012-E, s/n:19319
Peels: 46"-72"OB
Restricts: 36"-72"
Power Holddown Wheel

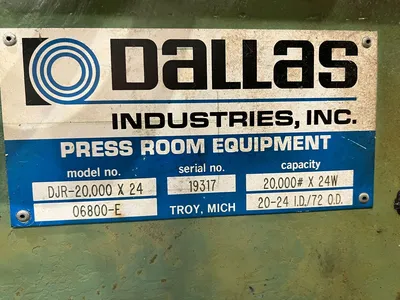

Uncoiler:
Model: DJR-20,000#x24 / 06800-E
s/n: 19317
Capacity: 20,000# x 24" Wide
Coil ID: 20"-24"
Coil OD: 72"

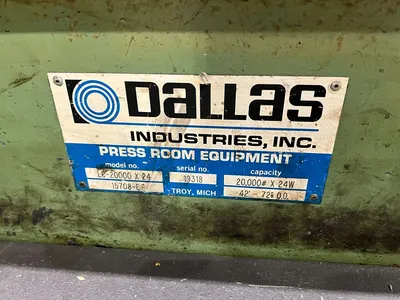

Load Car:
Model LC-20000x24 / 15708-E
s/n: 19318
Capacity: 20,000#x24"W
OD: 42"-72"
Available For Additional Cost
Kent H-Style End Welder
Model: H76F
Width: 4"Min. - 36"Max.
Material Thickness: .040"-.375"
